SA67減速機詳細信息
SA67減速機
SA67減速機重量:SA67減速機重量25公斤,SA67減速機與電機重量分別如下
SA67減速機與0.25KW電機重量35公斤,SA67減速機與0.37KW電機重量35.5公斤,SA67減速機與0.55KW電機重量40公斤,SA67減速機與0.75KW電機重量41公斤,SA67減速機與1.1KW電機重量45公斤,SA67減速機與1.5KW電機重量48公斤,SA67減速機與2.2KW電機重量57公斤,SA67減速機與3KW電機重量60公斤,SA67減速機與4KW電機重量71公斤,SA67減速機與5.5KW電機重量85公斤。自鎖減速機
SA67減速機加油量:可加齒輪油
SA67減速機M3方式安裝加1.8-2.6L,SA67減速機M2方式安裝加2L,SA67減速機M1方式安裝加1L,SA67減速機M4方式安裝加2.9L,SA67減速機M5方式安裝加2.5L,SA67減速機M6方式安裝加2.5L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

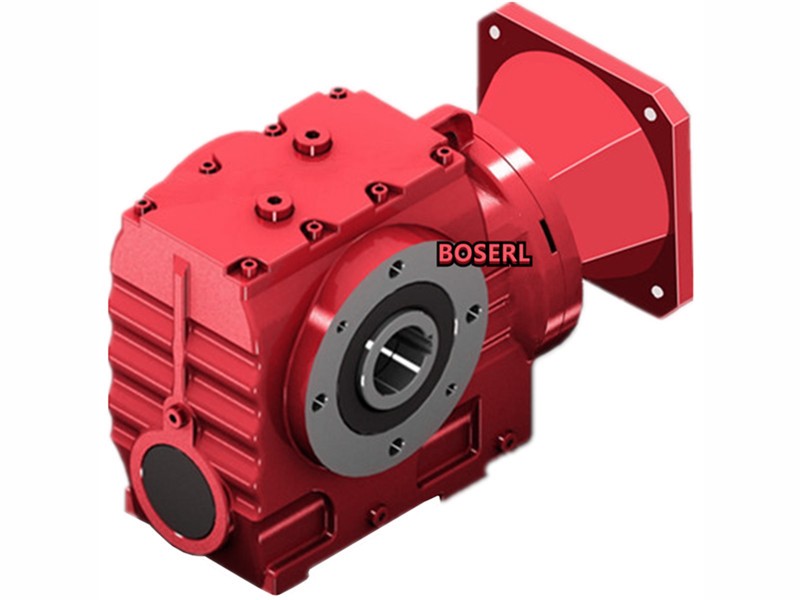

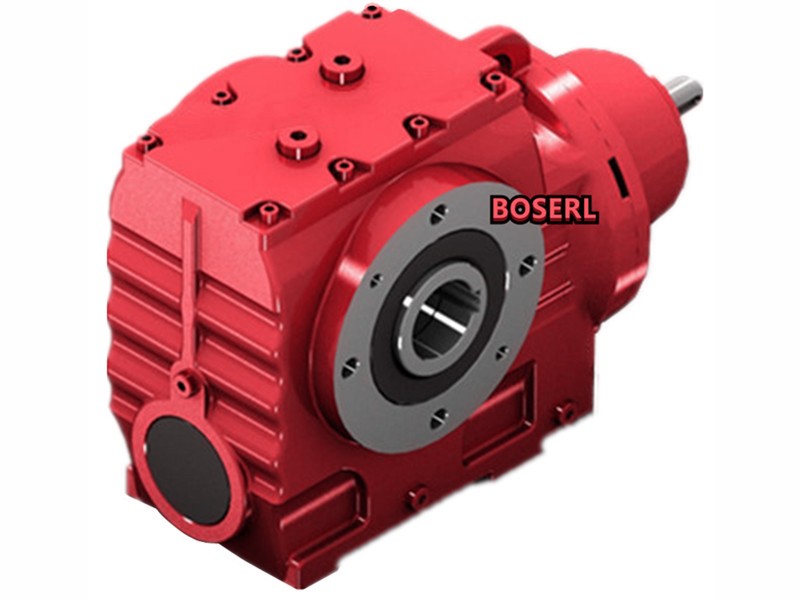

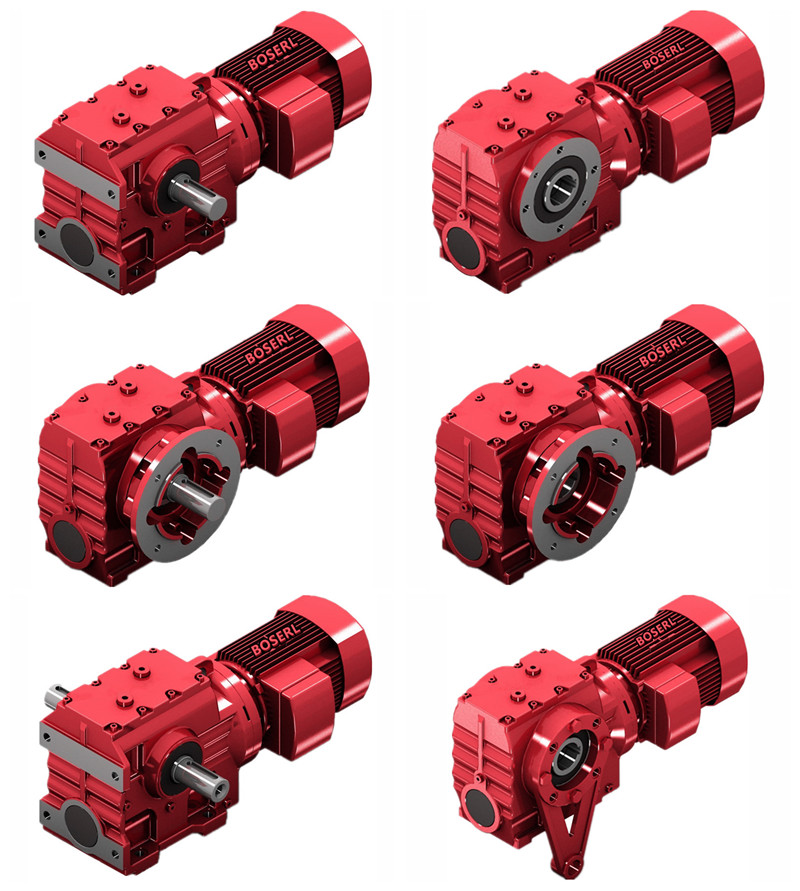

SA67減速機實物圖:圖一為SA67臥式中孔軸斜齒輪蝸輪蝸桿減速電機,圖二S67與自鎖功能底腳斜齒輪蝸輪蝸桿減速電機,圖三為SF67具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機,圖四為SAF67立式通孔斜齒輪減速機。
SA67減速機型號表示方法:
SA67減速機型號結構SA67-B3KW-4P-減速比-安裝方式-接線盒位置。
SA67減速機性能參數表結構說明:K代表服務系數,T扭力臂,E編碼器,Frame size代表基座規格,HF手動釋放裝置與自鎖功能,TF電機熱保護裝置,SA67,S67,SF67,SAF67減速機機座號,HR手動釋放裝置,N代表徑向負荷,1/min代表輸出轉數。
SA67減速機電機接線盒方位說明:本頁附件選型目錄視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°),B(90°),L(180° ),T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。
SA67減速機參數:
SA67減速機減速比217.41比,190.11比,180.6比,158.45比,134.4比,121.33比,106.75比,100.8比,85.83比,78比,75.06比,67.57比,65.63比,62.35比,58.8比,54.7比,46.4比,41.89比,36.85比,34.8比,29.63比,26.93比,24.44比,23.33比,23.22比,20.37比,20.3比,17.28比,15.60比,13.73比,12.96比,11.03比,10.03比,8.69比,7.56比
SA67減速機輸出轉數6.4轉,7.4轉,7.8轉,8.8轉,10轉,12轉,13轉,14轉,16轉,18轉,19轉,21轉,22轉,24轉,26轉,30轉,33轉,38轉,40轉,47轉,52轉,57轉,60轉,69轉,81轉,90轉,102轉,108轉,127轉,140轉,161轉,185轉。(以上轉數均為四級電機算出的,可用2P,6P,8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為S系列減速機的輸入)
SA67減速機電機可與三相,直流,變頻,剎車,防爆,伺服,交流,單相電機SA67與SA67與0.25KW,SA67與0.37KW,SA67與0.55KW,SA67與0.75KW,SA67與1.1KW,SA67與1.5KW,SA67與2.2KW,SA67與3KW,SA67與4KW,SA67與5.5KW。
SA67減速機輸出扭矩240N.m,295N.m,335N.m,340N.m,425N.m,480N.m,500N.m,520N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

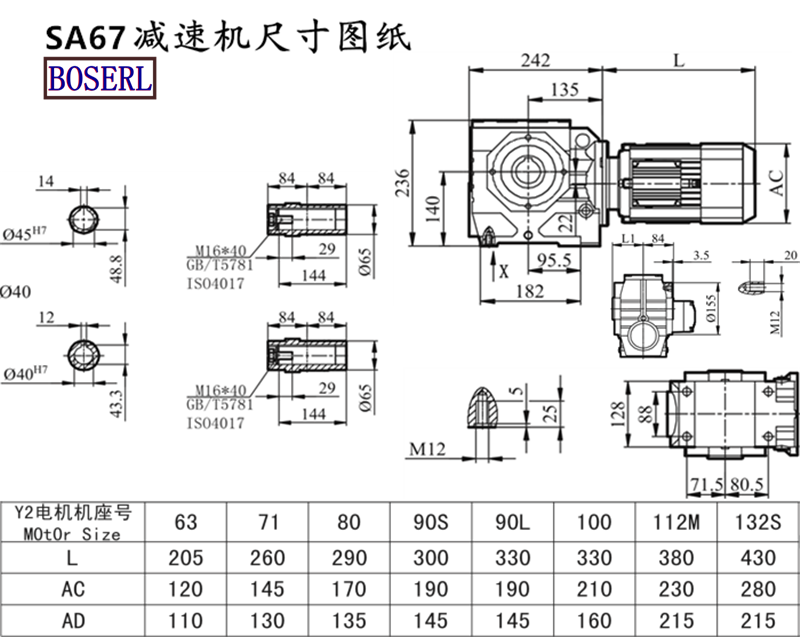

SA67減速機安裝尺寸:高236*寬168*長242
SA67減速機型號:SA67AQA80,SA67AQA100,SA67AQA115,SA67AQA140,SA67AQA160,SA67AQA190,SA67AQH80,SA67AQH100,SA67AQH115,SA67AQH140,SA67AQH160,SA67AQH190,JRTSA67-Y0.18KW,JRTSA67-Y0.25KW,JRTSA67-Y0.37KW,JRTSA67-Y0.55KW,JRTSA67-Y0.75KW,JRTSA67-Y1.1KW,JRTSA67-Y1.5KW,JRTSA67-Y100M4,JRTSA67-Y112M4,JRTSA67-Y132M4,JRTSA67-Y2.2KW,JRTSA67-Y3KW,JRTSA67-Y4KW,JRTSA67-Y5.5KW,JRTSA67-Y63M4,JRTSA67-Y71M4,JRTSA67-Y80M4,JRTSA67-Y90M4,JRTSA67-YEJ100M4,JRTSA67-YEJ112M4,JRTSA67-YEJ132M4,JRTSA67-YEJ63M4,JRTSA67-YEJ71M4,JRTSA67-YEJ80M4,JRTSA67-YEJ90M4,JRTSA67-YS100M4,JRTSA67-YS112M4,JRTSA67-YS132M4,JRTSA67-YS63M4,JRTSA67-YS71M4,JRTSA67-YS80M4,JRTSA67-YS90M4,JRTSA67-YVP100M4,JRTSA67-YVP112M4,JRTSA67-YVP132M4,JRTSA67-YVP63M4,JRTSA67-YVP71M4,JRTSA67-YVP80M4,JRTSA67-YVP90M4,JRTSA67-YVPEJ100M4,JRTSA67-YVPEJ112M4,JRTSA67-YVPEJ132M4,JRTSA67-YVPEJ63M4,JRTSA67-YVPEJ71M4,JRTSA67-YVPEJ80M4,JRTSA67-YVPEJ90M4,EWSA67-Y0.18KW,EWSA67-Y0.25KW,EWSA67-Y0.37KW,EWSA67-Y0.55KW,EWSA67-Y0.75KW,EWSA67-Y1.1KW,EWSA67-Y1.5KW,EWSA67-Y100M4,EWSA67-Y112M4,EWSA67-Y132M4,EWSA67-Y2.2KW,EWSA67-Y3KW,EWSA67-Y4KW,EWSA67-Y5.5KW,EWSA67-Y63M4,EWSA67-Y71M4,EWSA67-Y80M4,EWSA67-Y90M4,EWSA67-YEJ100M4,EWSA67-YEJ112M4,EWSA67-YEJ132M4,EWSA67-YEJ63M4,EWSA67-YEJ71M4,EWSA67-YEJ80M4,EWSA67-YEJ90M4,EWSA67-YS100M4,EWSA67-YS112M4,EWSA67-YS132M4,EWSA67-YS63M4,EWSA67-YS71M4,EWSA67-YS80M4,EWSA67-YS90M4,EWSA67-YVP100M4,EWSA67-YVP112M4,EWSA67-YVP132M4,EWSA67-YVP63M4,EWSA67-YVP71M4,EWSA67-YVP80M4,EWSA67-YVP90M4,EWSA67-YVPEJ100M4,EWSA67-YVPEJ112M4,EWSA67-YVPEJ132M4,EWSA67-YVPEJ63M4,EWSA67-YVPEJ71M4,EWSA67-YVPEJ80M4,EWSA67-YVPEJ90M4,SLSA67-Y0.18KW,SLSA67-Y0.25KW,SLSA67-Y0.37KW,SLSA67-Y0.55KW,SLSA67-Y0.75KW,SLSA67-Y1.1KW,SLSA67-Y1.5KW,SLSA67-Y100M4,SLSA67-Y112M4,SLSA67-Y132M4,SLSA67-Y2.2KW,SLSA67-Y3KW,SLSA67-Y4KW,SLSA67-Y5.5KW,SLSA67-Y63M4,SLSA67-Y71M4,SLSA67-Y80M4,SLSA67-Y90M4,SLSA67-YEJ100M4,SLSA67-YEJ112M4,SLSA67-YEJ132M4,SLSA67-YEJ63M4,SLSA67-YEJ71M4,SLSA67-YEJ80M4,SLSA67-YEJ90M4,SLSA67-YS100M4,SLSA67-YS112M4,SLSA67-YS132M4,SLSA67-YS63M4,SLSA67-YS71M4,SLSA67-YS80M4,SLSA67-YS90M4,SLSA67-YVP100M4,SLSA67-YVP112M4,SLSA67-YVP132M4,SLSA67-YVP63M4,SLSA67-YVP71M4,SLSA67-YVP80M4,SLSA67-YVP90M4,SLSA67-YVPEJ100M4,SLSA67-YVPEJ112M4,SLSA67-YVPEJ132M4,SLSA67-YVPEJ63M4,SLSA67-YVPEJ71M4,SLSA67-YVPEJ80M4,SLSA67-YVPEJ90M4,DSZSA67-Y0.18KW,DSZSA67-Y0.25KW,DSZSA67-Y0.37KW,DSZSA67-Y0.55KW,DSZSA67-Y0.75KW,DSZSA67-Y1.1KW,DSZSA67-Y1.5KW,DSZSA67-Y100M4,DSZSA67-Y112M4,DSZSA67-Y132M4,DSZSA67-Y2.2KW,DSZSA67-Y3KW,DSZSA67-Y4KW,DSZSA67-Y5.5KW,DSZSA67-Y63M4,DSZSA67-Y71M4,DSZSA67-Y80M4,DSZSA67-Y90M4,DSZSA67-YEJ100M4,DSZSA67-YEJ112M4,DSZSA67-YEJ132M4,DSZSA67-YEJ63M4,DSZSA67-YEJ71M4,DSZSA67-YEJ80M4,DSZSA67-YEJ90M4,DSZSA67-YS100M4,DSZSA67-YS112M4,DSZSA67-YS132M4,DSZSA67-YS63M4,DSZSA67-YS71M4,DSZSA67-YS80M4,DSZSA67-YS90M4,DSZSA67-YVP100M4,DSZSA67-YVP112M4,DSZSA67-YVP132M4,DSZSA67-YVP63M4,DSZSA67-YVP71M4,DSZSA67-YVP80M4,DSZSA67-YVP90M4,DSZSA67-YVPEJ100M4,DSZSA67-YVPEJ112M4,DSZSA67-YVPEJ132M4,DSZSA67-YVPEJ63M4,DSZSA67-YVPEJ71M4,DSZSA67-YVPEJ80M4,DSZSA67-YVPEJ90M4,BSA67-Y0.18KW,BSA67-Y0.25KW,BSA67-Y0.37KW,BSA67-Y0.55KW,BSA67-Y0.75KW,BSA67-Y1.1KW,BSA67-Y1.5KW,BSA67-Y100M4,BSA67-Y112M4,BSA67-Y132M4,BSA67-Y2.2KW,BSA67-Y3KW,BSA67-Y4KW,BSA67-Y5.5KW,BSA67-Y63M4,BSA67-Y71M4,BSA67-Y80M4,BSA67-Y90M4,BSA67-YEJ100M4,BSA67-YEJ112M4,BSA67-YEJ132M4,BSA67-YEJ63M4,BSA67-YEJ71M4,BSA67-YEJ80M4,BSA67-YEJ90M4,BSA67-YS100M4,BSA67-YS112M4,BSA67-YS132M4,BSA67-YS63M4,BSA67-YS71M4,BSA67-YS80M4,BSA67-YS90M4,BSA67-YVP100M4,BSA67-YVP112M4,BSA67-YVP132M4,BSA67-YVP63M4,BSA67-YVP71M4,BSA67-YVP80M4,BSA67-YVP90M4,BSA67-YVPEJ100M4,BSA67-YVPEJ112M4,BSA67-YVPEJ132M4,BSA67-YVPEJ63M4,BSA67-YVPEJ71M4,BSA67-YVPEJ80M4,BSA67-YVPEJ90M4,GSA67-Y0.18KW,GSA67-Y0.25KW,GSA67-Y0.37KW,GSA67-Y0.55KW,GSA67-Y0.75KW,GSA67-Y1.1KW,GSA67-Y1.5KW,GSA67-Y100M4,GSA67-Y112M4,GSA67-Y132M4,GSA67-Y2.2KW,GSA67-Y3KW,GSA67-Y4KW,GSA67-Y5.5KW,GSA67-Y63M4,GSA67-Y71M4,GSA67-Y80M4,GSA67-Y90M4,GSA67-YEJ100M4,GSA67-YEJ112M4,GSA67-YEJ132M4,GSA67-YEJ63M4,GSA67-YEJ71M4,GSA67-YEJ80M4,GSA67-YEJ90M4,GSA67-YS100M4,GSA67-YS112M4,GSA67-YS132M4,GSA67-YS63M4,GSA67-YS71M4,GSA67-YS80M4,GSA67-YS90M4,GSA67-YVP100M4,GSA67-YVP112M4,GSA67-YVP132M4,GSA67-YVP63M4,GSA67-YVP71M4,GSA67-YVP80M4,GSA67-YVP90M4,GSA67-YVPEJ100M4,GSA67-YVPEJ112M4,GSA67-YVPEJ132M4,GSA67-YVPEJ63M4,GSA67-YVPEJ71M4,GSA67-YVPEJ80M4,GSA67-YVPEJ90M4,SCA67-Y0.18KW,SCA67-Y0.25KW,SCA67-Y0.37KW,SCA67-Y0.55KW,SCA67-Y0.75KW,SCA67-Y1.1KW,SCA67-Y1.5KW,SCA67-Y100M4,SCA67-Y112M4,SCA67-Y132M4,SCA67-Y2.2KW,SCA67-Y3KW,SCA67-Y4KW,SCA67-Y5.5KW,SCA67-Y63M4,SCA67-Y71M4,SCA67-Y80M4,SCA67-Y90M4,SCA67-YEJ100M4,SCA67-YEJ112M4,SCA67-YEJ132M4,SCA67-YEJ63M4,SCA67-YEJ71M4,SCA67-YEJ80M4,SCA67-YEJ90M4,SCA67-YS100M4,SCA67-YS112M4,SCA67-YS132M4,SCA67-YS63M4,SCA67-YS71M4,SCA67-YS80M4,SCA67-YS90M4,SCA67-YVP100M4,SCA67-YVP112M4,SCA67-YVP132M4,SCA67-YVP63M4,SCA67-YVP71M4,SCA67-YVP80M4,SCA67-YVP90M4,SCA67-YVPEJ100M4,SCA67-YVPEJ112M4,SCA67-YVPEJ132M4,SCA67-YVPEJ63M4,SCA67-YVPEJ71M4,SCA67-YVPEJ80M4,SCA67-YVPEJ90M4,MTNA67-Y0.18KW,MTNA67-Y0.25KW,MTNA67-Y0.37KW,MTNA67-Y0.55KW,MTNA67-Y0.75KW,MTNA67-Y1.1KW,MTNA67-Y1.5KW,MTNA67-Y100M4,MTNA67-Y112M4,MTNA67-Y132M4,MTNA67-Y2.2KW,MTNA67-Y3KW,MTNA67-Y4KW,MTNA67-Y5.5KW,MTNA67-Y63M4,MTNA67-Y71M4,MTNA67-Y80M4,MTNA67-Y90M4,MTNA67-YEJ100M4,MTNA67-YEJ112M4,MTNA67-YEJ132M4,MTNA67-YEJ63M4,MTNA67-YEJ71M4,MTNA67-YEJ80M4,MTNA67-YEJ90M4,MTNA67-YS100M4,MTNA67-YS112M4,MTNA67-YS132M4,MTNA67-YS63M4,MTNA67-YS71M4,MTNA67-YS80M4,MTNA67-YS90M4,MTNA67-YVP100M4,MTNA67-YVP112M4,MTNA67-YVP132M4,MTNA67-YVP63M4,MTNA67-YVP71M4,MTNA67-YVP80M4,MTNA67-YVP90M4,MTNA67-YVPEJ100M4,MTNA67-YVPEJ112M4,MTNA67-YVPEJ132M4,MTNA67-YVPEJ63M4,MTNA67-YVPEJ71M4,MTNA67-YVPEJ80M4,MTNA67-YVPEJ90M4,WXSA67-WSS0.18KW,WXSA67-WSS0.25KW,WXSA67-WSS0.37KW,WXSA67-WSS0.55KW,WXSA67-WSS0.75KW,WXSA67-WSS1.1KW,WXSA67-WSS1.5KW,WXSA67-WSS100M4,WXSA67-WSS112M4,WXSA67-WSS132M4,WXSA67-WSS2.2KW,WXSA67-WSS3KW,WXSA67-WSS4KW,WXSA67-WSS5.5KW,WXSA67-WSS63M4,WXSA67-WSS71M4,WXSA67-WSS80M4,WXSA67-WSS90M4,WXSA67-WSSB100M4,WXSA67-WSSB112M4,WXSA67-WSSB132M4,WXSA67-WSSB63M4,WXSA67-WSSB71M4,WXSA67-WSSB80M4,WXSA67-WSSB90M4,WXSA67-WSSVP100M4,WXSA67-WSSVP112M4,WXSA67-WSSVP132M4,WXSA67-WSSVP63M4,WXSA67-WSSVP71M4,WXSA67-WSSVP80M4,WXSA67-WSSVP90M4,WXSA67-WSSVPB100M4,WXSA67-WSSVPB112M4,WXSA67-WSSVPB132M4,WXSA67-WSSVPB63M4,WXSA67-WSSVPB71M4,WXSA67-WSSVPB80M4,WXSA67-WSSVPB90M4。伺服電機連接減速機
SA67減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-saxiliejiansuji-cn.html
推薦類似型號:S67減速機
關鍵詞:加伺服電機連接減速機一體化_私服電機加減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號:SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97齒輪減速機
SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
