SA47減速機詳細信息
SA47減速機
SA47減速機重量:SA47減速機重量9公斤,SA47減速機與電機重量分別如下
SA47減速機與0.12KW電機重量14.5公斤,SA47減速機與0.18KW電機重量15公斤,SA47減速機與0.25KW電機重量19公斤,SA47減速機與0.37KW電機重量19.5公斤,SA47減速機與0.55KW電機重量24公斤,SA47減速機與0.75KW電機重量25公斤,SA47減速機與1.1KW電機重量29公斤,SA47減速機與1.5KW電機重量32公斤。
SA47減速機加油量:可加齒輪油自鎖減速機
SA47減速機M3方式安裝加0.7-0.9L,SA47減速機M2方式安裝加0.8L,SA47減速機M1方式安裝加0.4L,SA47減速機M4方式安裝加1L,SA47減速機M5方式安裝加0.8L,SA47減速機M6方式安裝加0.8L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

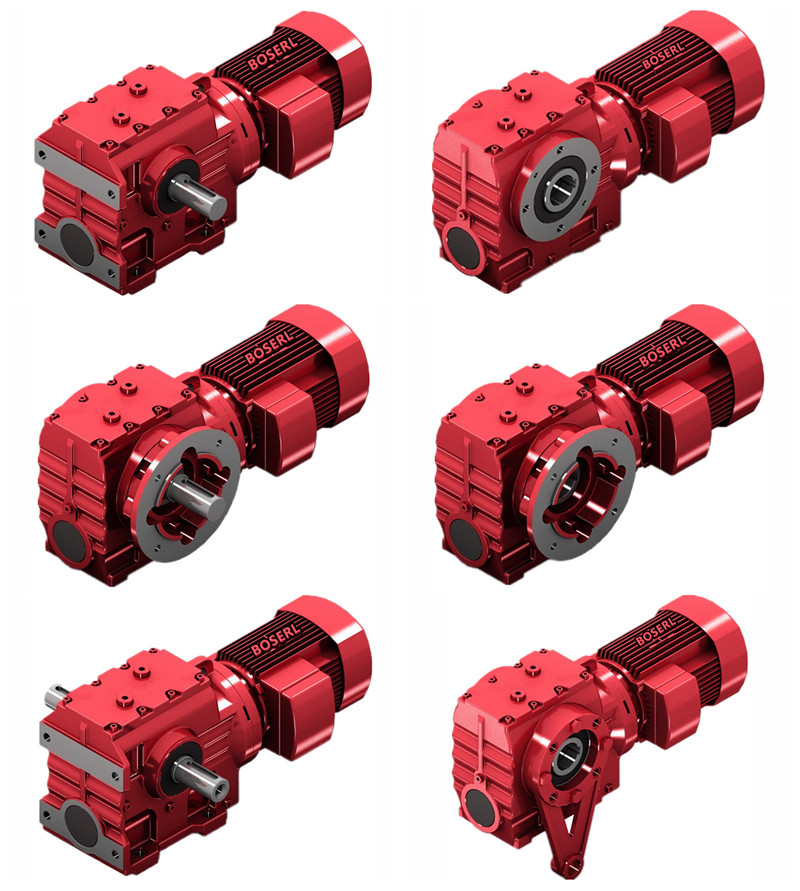

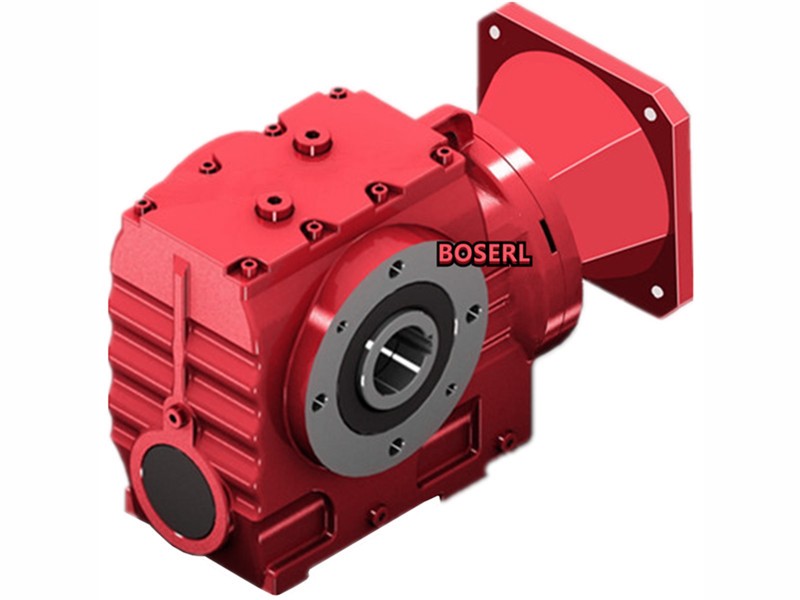

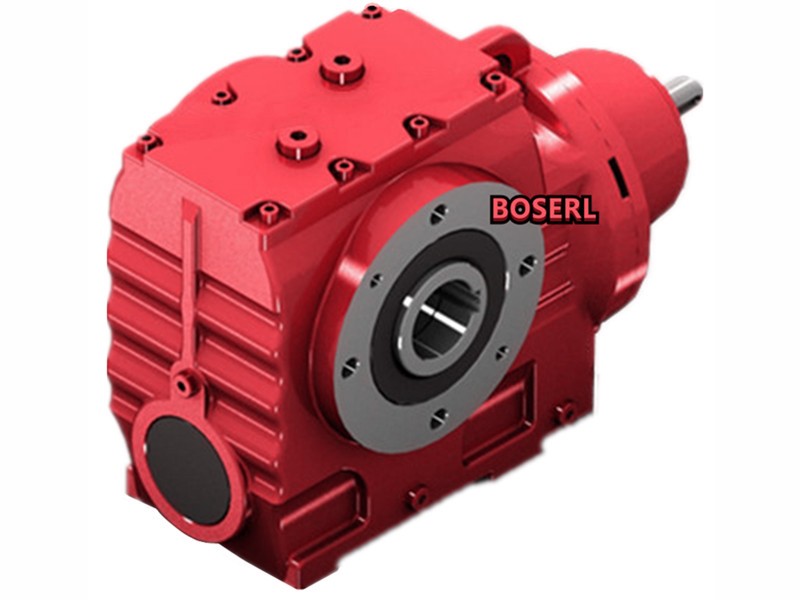

SA47減速機實物圖:圖一為SA47臥式中孔軸斜齒輪蝸輪蝸桿減速電機,圖二S47與自鎖功能底腳斜齒輪蝸輪蝸桿減速電機,圖三為SF47具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機,圖四為SAF47立式通孔斜齒輪減速機。
SA47減速機型號表示方法:
SA47減速機型號結構SA47-B0.75KW-4P-減速比-方式安裝-接線盒位置。
SA47減速機性能參數表結構說明:K代表服務系數,T扭力臂,E編碼器,Frame size代表基座規格,HF手動釋放裝置與自鎖功能,TF電機熱保護裝置,SA47,SF47,S47,SAF47減速機機座號,HR手動釋放裝置,N代表徑向負荷,1/min代表輸出轉數。
SA47減速機電機接線盒方位說明:本頁附件選型目錄視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°),B(90°),L(180° ),T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。
SA47減速機參數:
SA47減速機減速比:201比,184.8比,158.12比,137.05比,128.10比,110.73比,94.08比,84.00比,71.75比,69.39比,67.20比,63.80比,56.61比,54.59比,47.32比,44.22比,38.23比,32.48比,29.00比,24.77比,23.20比,20.33比,19.54比,17.62比,16.47比,14.24比,12.10比,10.80比,9.23比,8.64比,7.28比,6.83比。
SA47減速機輸出轉數7轉,7.6轉,8.9轉,10轉,11轉,13轉,15轉,17轉,20轉,21轉,22轉,25轉,26轉,30轉,32轉,37轉,43轉,48轉,57轉,60轉,69轉,72轉,79轉,85轉,98轉,116轉,130轉,152轉,162轉,192轉,205轉。(以上轉數均為四級電機算出的,可用2P,6P,8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為S系列減速機的輸入)
SA47減速機電機可與三相,直流,變頻,剎車,防爆,伺服,交流,單相電機SA47與0.12KW,SA47與0.18KW,SA47與0.25KW,SA47與0.37KW,SA47與0.55KW,SA47與0.75KW,SA47與1.1KW,SA47與1.5KW。
SA47減速機輸出扭矩170N.m,168N.m,167N.m,155N.m,165N.m,152N.m,110N.m,144N.m,109N.m,103N.m,78N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

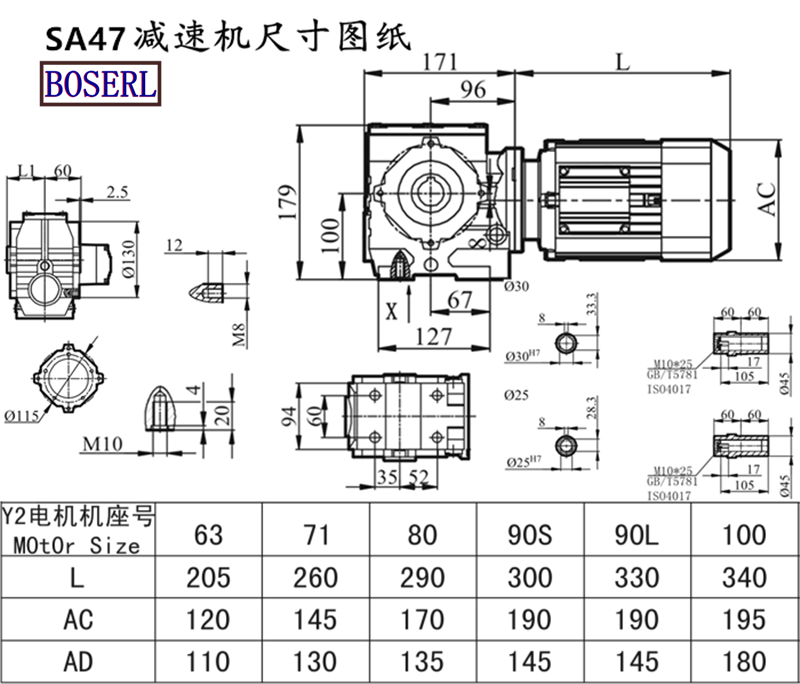

SA47減速機安裝尺寸:高179*寬120*長171
SA47減速機型號:SA47AQA80,SA47AQA100,SA47AQA115,SA47AQA140,SA47AQA160,SA47AQA190,SA47AQH80,SA47AQH100,SA47AQH115,SA47AQH140,SA47AQH160,SA47AQH190,JRTSA47-Y0.12KW,JRTSA47-Y0.18KW,JRTSA47-Y0.25KW,JRTSA47-Y0.37KW,JRTSA47-Y0.55KW,JRTSA47-Y0.75KW,JRTSA47-Y1.1KW,JRTSA47-Y1.5KW,JRTSA47-Y63M4,JRTSA47-Y71M4,JRTSA47-Y80M4,JRTSA47-Y90M4,JRTSA47-YEJ63M4,JRTSA47-YEJ71M4,JRTSA47-YEJ80M4,JRTSA47-YEJ90M4,JRTSA47-YS63M4,JRTSA47-YS71M4,JRTSA47-YS80M4,JRTSA47-YS90M4,JRTSA47-YVP63M4,JRTSA47-YVP71M4,JRTSA47-YVP80M4,JRTSA47-YVP90M4,JRTSA47-YVPEJ63M4,JRTSA47-YVPEJ71M4,JRTSA47-YVPEJ80M4,JRTSA47-YVPEJ90M4,EWSA47-Y0.12KW,EWSA47-Y0.18KW,EWSA47-Y0.25KW,EWSA47-Y0.37KW,EWSA47-Y0.55KW,EWSA47-Y0.75KW,EWSA47-Y1.1KW,EWSA47-Y1.5KW,EWSA47-Y63M4,EWSA47-Y71M4,EWSA47-Y80M4,EWSA47-Y90M4,EWSA47-YEJ63M4,EWSA47-YEJ71M4,EWSA47-YEJ80M4,EWSA47-YEJ90M4,EWSA47-YS63M4,EWSA47-YS71M4,EWSA47-YS80M4,EWSA47-YS90M4,EWSA47-YVP63M4,EWSA47-YVP71M4,EWSA47-YVP80M4,EWSA47-YVP90M4,EWSA47-YVPEJ63M4,EWSA47-YVPEJ71M4,EWSA47-YVPEJ80M4,EWSA47-YVPEJ90M4,SLSA47-Y0.12KW,SLSA47-Y0.18KW,SLSA47-Y0.25KW,SLSA47-Y0.37KW,SLSA47-Y0.55KW,SLSA47-Y0.75KW,SLSA47-Y1.1KW,SLSA47-Y1.5KW,SLSA47-Y63M4,SLSA47-Y71M4,SLSA47-Y80M4,SLSA47-Y90M4,SLSA47-YEJ63M4,SLSA47-YEJ71M4,SLSA47-YEJ80M4,SLSA47-YEJ90M4,SLSA47-YS63M4,SLSA47-YS71M4,SLSA47-YS80M4,SLSA47-YS90M4,SLSA47-YVP63M4,SLSA47-YVP71M4,SLSA47-YVP80M4,SLSA47-YVP90M4,SLSA47-YVPEJ63M4,SLSA47-YVPEJ71M4,SLSA47-YVPEJ80M4,SLSA47-YVPEJ90M4,DSZSA47-Y0.12KW,DSZSA47-Y0.18KW,DSZSA47-Y0.25KW,DSZSA47-Y0.37KW,DSZSA47-Y0.55KW,DSZSA47-Y0.75KW,DSZSA47-Y1.1KW,DSZSA47-Y1.5KW,DSZSA47-Y63M4,DSZSA47-Y71M4,DSZSA47-Y80M4,DSZSA47-Y90M4,DSZSA47-YEJ63M4,DSZSA47-YEJ71M4,DSZSA47-YEJ80M4,DSZSA47-YEJ90M4,DSZSA47-YS63M4,DSZSA47-YS71M4,DSZSA47-YS80M4,DSZSA47-YS90M4,DSZSA47-YVP63M4,DSZSA47-YVP71M4,DSZSA47-YVP80M4,DSZSA47-YVP90M4,DSZSA47-YVPEJ63M4,DSZSA47-YVPEJ71M4,DSZSA47-YVPEJ80M4,DSZSA47-YVPEJ90M4,BSA47-Y0.12KW,BSA47-Y0.18KW,BSA47-Y0.25KW,BSA47-Y0.37KW,BSA47-Y0.55KW,BSA47-Y0.75KW,BSA47-Y1.1KW,BSA47-Y1.5KW,BSA47-Y63M4,BSA47-Y71M4,BSA47-Y80M4,BSA47-Y90M4,BSA47-YEJ63M4,BSA47-YEJ71M4,BSA47-YEJ80M4,BSA47-YEJ90M4,BSA47-YS63M4,BSA47-YS71M4,BSA47-YS80M4,BSA47-YS90M4,BSA47-YVP63M4,BSA47-YVP71M4,BSA47-YVP80M4,BSA47-YVP90M4,BSA47-YVPEJ63M4,BSA47-YVPEJ71M4,BSA47-YVPEJ80M4,BSA47-YVPEJ90M4,GSA47-Y0.12KW,GSA47-Y0.18KW,GSA47-Y0.25KW,GSA47-Y0.37KW,GSA47-Y0.55KW,GSA47-Y0.75KW,GSA47-Y1.1KW,GSA47-Y1.5KW,GSA47-Y63M4,GSA47-Y71M4,GSA47-Y80M4,GSA47-Y90M4,GSA47-YEJ63M4,GSA47-YEJ71M4,GSA47-YEJ80M4,GSA47-YEJ90M4,GSA47-YS63M4,GSA47-YS71M4,GSA47-YS80M4,GSA47-YS90M4,GSA47-YVP63M4,GSA47-YVP71M4,GSA47-YVP80M4,GSA47-YVP90M4,GSA47-YVPEJ63M4,GSA47-YVPEJ71M4,GSA47-YVPEJ80M4,GSA47-YVPEJ90M4,SCA47-Y0.12KW,SCA47-Y0.18KW,SCA47-Y0.25KW,SCA47-Y0.37KW,SCA47-Y0.55KW,SCA47-Y0.75KW,SCA47-Y1.1KW,SCA47-Y1.5KW,SCA47-Y63M4,SCA47-Y71M4,SCA47-Y80M4,SCA47-Y90M4,SCA47-YEJ63M4,SCA47-YEJ71M4,SCA47-YEJ80M4,SCA47-YEJ90M4,SCA47-YS63M4,SCA47-YS71M4,SCA47-YS80M4,SCA47-YS90M4,SCA47-YVP63M4,SCA47-YVP71M4,SCA47-YVP80M4,SCA47-YVP90M4,SCA47-YVPEJ63M4,SCA47-YVPEJ71M4,SCA47-YVPEJ80M4,SCA47-YVPEJ90M4,MTNA47-Y0.12KW,MTNA47-Y0.18KW,MTNA47-Y0.25KW,MTNA47-Y0.37KW,MTNA47-Y0.55KW,MTNA47-Y0.75KW,MTNA47-Y1.1KW,MTNA47-Y1.5KW,MTNA47-Y63M4,MTNA47-Y71M4,MTNA47-Y80M4,MTNA47-Y90M4,MTNA47-YEJ63M4,MTNA47-YEJ71M4,MTNA47-YEJ80M4,MTNA47-YEJ90M4,MTNA47-YS63M4,MTNA47-YS71M4,MTNA47-YS80M4,MTNA47-YS90M4,MTNA47-YVP63M4,MTNA47-YVP71M4,MTNA47-YVP80M4,MTNA47-YVP90M4,MTNA47-YVPEJ63M4,MTNA47-YVPEJ71M4,MTNA47-YVPEJ80M4,MTNA47-YVPEJ90M4,WXSA47-WSS0.12KW,WXSA47-WSS0.18KW,WXSA47-WSS0.25KW,WXSA47-WSS0.37KW,WXSA47-WSS0.55KW,WXSA47-WSS0.75KW,WXSA47-WSS1.1KW,WXSA47-WSS1.5KW,WXSA47-WSS63M4,WXSA47-WSS71M4,WXSA47-WSS80M4,WXSA47-WSS90M4,WXSA47-WSSB63M4,WXSA47-WSSB71M4,WXSA47-WSSB80M4,WXSA47-WSSB90M4,WXSA47-WSSVP63M4,WXSA47-WSSVP71M4,WXSA47-WSSVP80M4,WXSA47-WSSVP90M4,WXSA47-WSSVPB63M4,WXSA47-WSSVPB71M4,WXSA47-WSSVPB80M4,WXSA47-WSSVPB90M4。伺服電機連接減速機
SA47減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-saxiliejiansuji-cn.html
推薦類似型號:S47減速機
關鍵詞:加伺服電機連接減速機一體化_私服電機加減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號:SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97齒輪減速機
SA系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
