S97減速機詳細信息
S97減速機
S97減速機重量:S97減速機重量170公斤,S97減速機配電機重量分別如下
S97減速機配1.1KW電機重量190公斤,S97減速機配1.5KW電機重量193公斤,S97減速機配2.2KW電機重量202公斤,S97減速機配3KW電機重量205公斤,S97減速機配4KW電機重量216公斤,S97減速機配5.5KW電機重量230公斤,S97減速機配7.5KW電機重量243公斤,S97減速機配11KW電機重量285公斤,S97減速機配15KW電機重量305公斤,S97減速機配18.5KW電機重量342公斤,S97減速機配22KW電機重量355公斤。自鎖減速機
S97減速機加油量:可加礦物油
S97減速機M1安裝加6.8升,S97減速機M2安裝加15升,S97減速機M3安裝加13.4/18升,S97減速機M4安裝加21.8升,S97減速機M5安裝加17升,S97減速機M6安裝加17升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

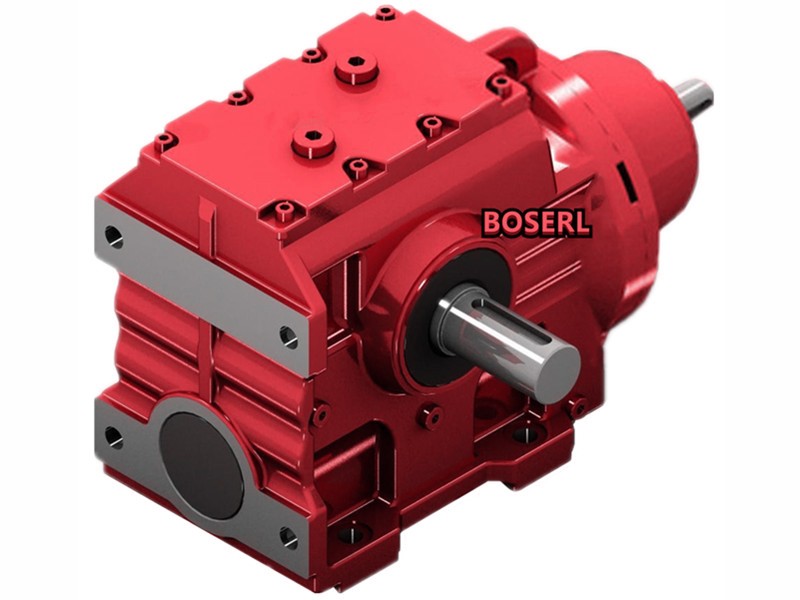

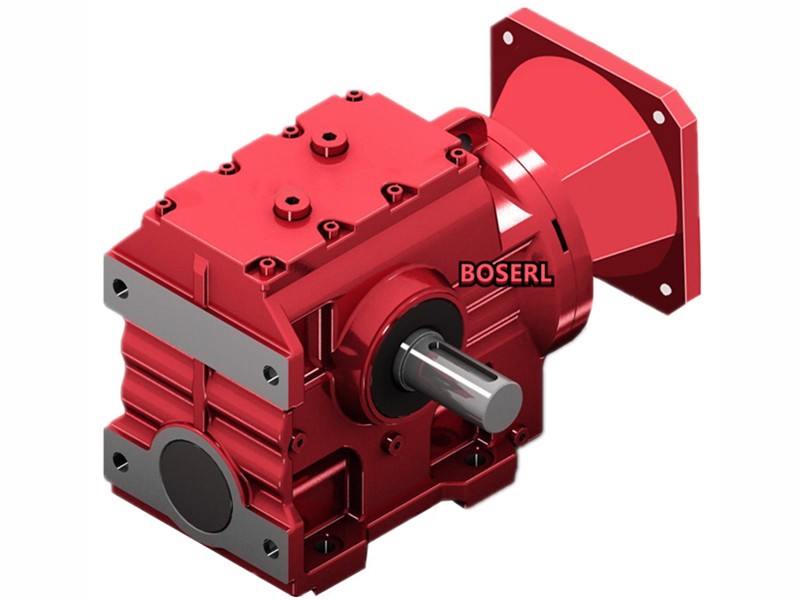

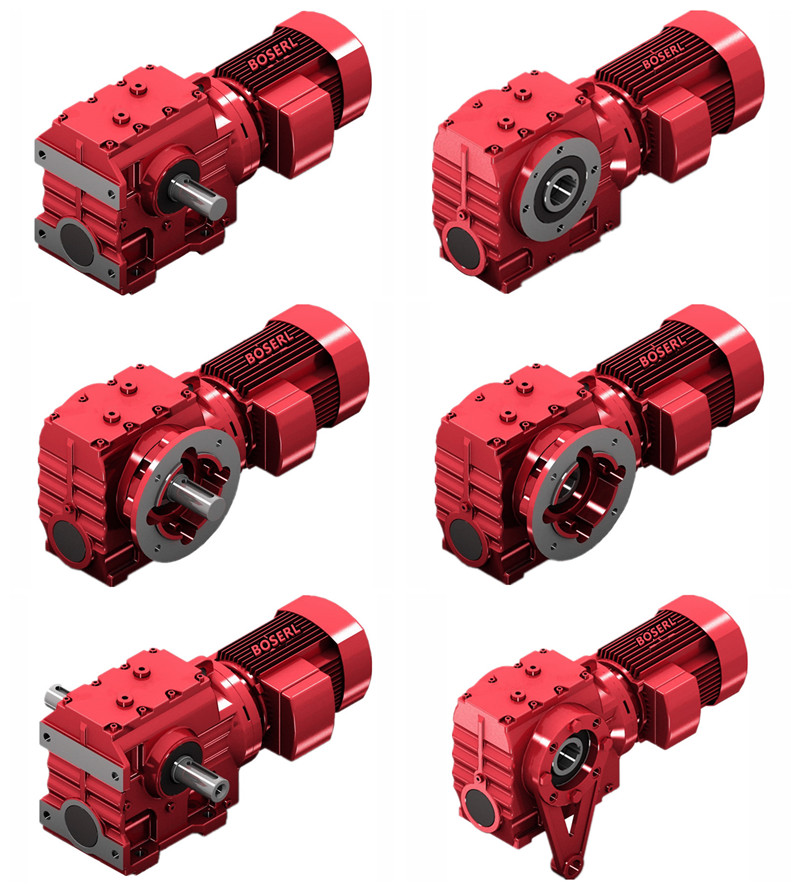

S97減速機實物圖:圖一為S97帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機,圖二SF97具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機,圖三為SA97臥式中孔軸斜齒輪蝸輪蝸桿減速電機,圖四為SAF97立式通孔斜齒輪減速機。
S97減速機型號表示方法:
S97減速機型號結構S97-B22KW-4P-減速比-安裝方式-接線盒位置。
S97減速機性能參數表結構說明:E編碼器,T扭力臂,K代表服務系數,Frame size代表基座規格,HF手動釋放裝置帶自鎖功能,TF電機熱保護裝置,S97、SF97、SA97、SAF97減速機機座號,HR手動釋放裝置,N代表徑向負荷,1/min代表輸出轉數。S系列減速機
S97減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。
S97減速機結構圖:
S97減速機參數:
S97減速機電機可配三相/直流/變頻/剎車/防爆/伺服/交流/單相電機S97配1.1KW,S97配1.5KW,S97配2.2KW,S97配3KW,S97配4KW,S97配5.5KW,S97配7.5KW,S97配11KW,S97配15KW,S97配18.5KW,S97配22KW。
S97減速機減速比286.4比,262.22比,231.67比,196.52比,180.95比,161.74比,145.6比,131.85比,116.92比,105.71比,89.6比,80.85比,78.26比,71.43比,65.45比,60.59比,55.79比,49.87比,44.89比,40.65比,36.05比,32.6比,27.63比,26.39比,24.13比,23.59比,21.23比,19.23比,17.05比,15.42比,13.07比,11.41比,9.55比,8.26比。
S97減速機輸出轉數4.9轉,5.3轉,6轉,7.1轉,7.7轉,8.7轉,9.6轉,11轉,12轉,13轉,16轉,17轉,18轉,20轉,21轉,23轉,25轉,28轉,31轉,34轉,39轉,43轉,51轉,53轉,58轉,59轉,66轉,73轉,82轉,91轉,107轉,123轉,147轉,169轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為S系列減速機的輸入)
S97減速機輸出扭矩1770N.m,2040N.m,2210N.m,2330N.m,2470N.m,2570N.m,2600N.m,2870N.m,2900N.m,3010N.m,3080N.m,3200N.m,3230N.m,3240N.m,3300N.m,3300N.m,3440N.m,3510N.m,3650N.m,3730N.m,3840N.m,3920N.m,4000N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)
S97減速機尺寸圖紙:高455*寬450(帶輸出軸)*長420
S97減速機型號:S97AQA80,S97AQA100,S97AQA115,S97AQA140,S97AQA160,S97AQA190,S97AQH80,S97AQH100,S97AQH115,S97AQH140,S97AQH160,S97AQH190,JRTS97-Y1.1KW,JRTS97-Y1.5KW,JRTS97-Y100M4,JRTS97-Y112M4,JRTS97-Y11KW,JRTS97-Y132M4,JRTS97-Y15KW,JRTS97-Y160M4,JRTS97-Y18.5KW,JRTS97-Y180M4,JRTS97-Y2.2KW,JRTS97-Y200M4,JRTS97-Y22KW,JRTS97-Y3KW,JRTS97-Y4KW,JRTS97-Y5.5KW,JRTS97-Y7.5KW,JRTS97-Y80M4,JRTS97-Y90M4,JRTS97-YEJ100M4,JRTS97-YEJ112M4,JRTS97-YEJ132M4,JRTS97-YEJ160M4,JRTS97-YEJ180M4,JRTS97-YEJ200M4,JRTS97-YEJ80M4,JRTS97-YEJ90M4,JRTS97-YS100M4,JRTS97-YS112M4,JRTS97-YS132M4,JRTS97-YS160M4,JRTS97-YS180M4,JRTS97-YS200M4,JRTS97-YS80M4,JRTS97-YS90M4,JRTS97-YVP100M4,JRTS97-YVP112M4,JRTS97-YVP132M4,JRTS97-YVP160M4,JRTS97-YVP180M4,JRTS97-YVP200M4,JRTS97-YVP80M4,JRTS97-YVP90M4,JRTS97-YVPEJ100M4,JRTS97-YVPEJ112M4,JRTS97-YVPEJ132M4,JRTS97-YVPEJ160M4,JRTS97-YVPEJ180M4,JRTS97-YVPEJ200M4,JRTS97-YVPEJ80M4,JRTS97-YVPEJ90M4,EWS97-Y1.1KW,EWS97-Y1.5KW,EWS97-Y100M4,EWS97-Y112M4,EWS97-Y11KW,EWS97-Y132M4,EWS97-Y15KW,EWS97-Y160M4,EWS97-Y18.5KW,EWS97-Y180M4,EWS97-Y2.2KW,EWS97-Y200M4,EWS97-Y22KW,EWS97-Y3KW,EWS97-Y4KW,EWS97-Y5.5KW,EWS97-Y7.5KW,EWS97-Y80M4,EWS97-Y90M4,EWS97-YEJ100M4,EWS97-YEJ112M4,EWS97-YEJ132M4,EWS97-YEJ160M4,EWS97-YEJ180M4,EWS97-YEJ200M4,EWS97-YEJ80M4,EWS97-YEJ90M4,EWS97-YS100M4,EWS97-YS112M4,EWS97-YS132M4,EWS97-YS160M4,EWS97-YS180M4,EWS97-YS200M4,EWS97-YS80M4,EWS97-YS90M4,EWS97-YVP100M4,EWS97-YVP112M4,EWS97-YVP132M4,EWS97-YVP160M4,EWS97-YVP180M4,EWS97-YVP200M4,EWS97-YVP80M4,EWS97-YVP90M4,EWS97-YVPEJ100M4,EWS97-YVPEJ112M4,EWS97-YVPEJ132M4,EWS97-YVPEJ160M4,EWS97-YVPEJ180M4,EWS97-YVPEJ200M4,EWS97-YVPEJ80M4,EWS97-YVPEJ90M4,SLS97-Y1.1KW,SLS97-Y1.5KW,SLS97-Y100M4,SLS97-Y112M4,SLS97-Y11KW,SLS97-Y132M4,SLS97-Y15KW,SLS97-Y160M4,SLS97-Y18.5KW,SLS97-Y180M4,SLS97-Y2.2KW,SLS97-Y200M4,SLS97-Y22KW,SLS97-Y3KW,SLS97-Y4KW,SLS97-Y5.5KW,SLS97-Y7.5KW,SLS97-Y80M4,SLS97-Y90M4,SLS97-YEJ100M4,SLS97-YEJ112M4,SLS97-YEJ132M4,SLS97-YEJ160M4,SLS97-YEJ180M4,SLS97-YEJ200M4,SLS97-YEJ80M4,SLS97-YEJ90M4,SLS97-YS100M4,SLS97-YS112M4,SLS97-YS132M4,SLS97-YS160M4,SLS97-YS180M4,SLS97-YS200M4,SLS97-YS80M4,SLS97-YS90M4,SLS97-YVP100M4,SLS97-YVP112M4,SLS97-YVP132M4,SLS97-YVP160M4,SLS97-YVP180M4,SLS97-YVP200M4,SLS97-YVP80M4,SLS97-YVP90M4,SLS97-YVPEJ100M4,SLS97-YVPEJ112M4,SLS97-YVPEJ132M4,SLS97-YVPEJ160M4,SLS97-YVPEJ180M4,SLS97-YVPEJ200M4,SLS97-YVPEJ80M4,SLS97-YVPEJ90M4,DSZS97-Y1.1KW,DSZS97-Y1.5KW,DSZS97-Y100M4,DSZS97-Y112M4,DSZS97-Y11KW,DSZS97-Y132M4,DSZS97-Y15KW,DSZS97-Y160M4,DSZS97-Y18.5KW,DSZS97-Y180M4,DSZS97-Y2.2KW,DSZS97-Y200M4,DSZS97-Y22KW,DSZS97-Y3KW,DSZS97-Y4KW,DSZS97-Y5.5KW,DSZS97-Y7.5KW,DSZS97-Y80M4,DSZS97-Y90M4,DSZS97-YEJ100M4,DSZS97-YEJ112M4,DSZS97-YEJ132M4,DSZS97-YEJ160M4,DSZS97-YEJ180M4,DSZS97-YEJ200M4,DSZS97-YEJ80M4,DSZS97-YEJ90M4,DSZS97-YS100M4,DSZS97-YS112M4,DSZS97-YS132M4,DSZS97-YS160M4,DSZS97-YS180M4,DSZS97-YS200M4,DSZS97-YS80M4,DSZS97-YS90M4,DSZS97-YVP100M4,DSZS97-YVP112M4,DSZS97-YVP132M4,DSZS97-YVP160M4,DSZS97-YVP180M4,DSZS97-YVP200M4,DSZS97-YVP80M4,DSZS97-YVP90M4,DSZS97-YVPEJ100M4,DSZS97-YVPEJ112M4,DSZS97-YVPEJ132M4,DSZS97-YVPEJ160M4,DSZS97-YVPEJ180M4,DSZS97-YVPEJ200M4,DSZS97-YVPEJ80M4,DSZS97-YVPEJ90M4,BS97-Y1.1KW,BS97-Y1.5KW,BS97-Y100M4,BS97-Y112M4,BS97-Y11KW,BS97-Y132M4,BS97-Y15KW,BS97-Y160M4,BS97-Y18.5KW,BS97-Y180M4,BS97-Y2.2KW,BS97-Y200M4,BS97-Y22KW,BS97-Y3KW,BS97-Y4KW,BS97-Y5.5KW,BS97-Y7.5KW,BS97-Y80M4,BS97-Y90M4,BS97-YEJ100M4,BS97-YEJ112M4,BS97-YEJ132M4,BS97-YEJ160M4,BS97-YEJ180M4,BS97-YEJ200M4,BS97-YEJ80M4,BS97-YEJ90M4,BS97-YS100M4,BS97-YS112M4,BS97-YS132M4,BS97-YS160M4,BS97-YS180M4,BS97-YS200M4,BS97-YS80M4,BS97-YS90M4,BS97-YVP100M4,BS97-YVP112M4,BS97-YVP132M4,BS97-YVP160M4,BS97-YVP180M4,BS97-YVP200M4,BS97-YVP80M4,BS97-YVP90M4,BS97-YVPEJ100M4,BS97-YVPEJ112M4,BS97-YVPEJ132M4,BS97-YVPEJ160M4,BS97-YVPEJ180M4,BS97-YVPEJ200M4,BS97-YVPEJ80M4,BS97-YVPEJ90M4,GS97-Y1.1KW,GS97-Y1.5KW,GS97-Y100M4,GS97-Y112M4,GS97-Y11KW,GS97-Y132M4,GS97-Y15KW,GS97-Y160M4,GS97-Y18.5KW,GS97-Y180M4,GS97-Y2.2KW,GS97-Y200M4,GS97-Y22KW,GS97-Y3KW,GS97-Y4KW,GS97-Y5.5KW,GS97-Y7.5KW,GS97-Y80M4,GS97-Y90M4,GS97-YEJ100M4,GS97-YEJ112M4,GS97-YEJ132M4,GS97-YEJ160M4,GS97-YEJ180M4,GS97-YEJ200M4,GS97-YEJ80M4,GS97-YEJ90M4,GS97-YS100M4,GS97-YS112M4,GS97-YS132M4,GS97-YS160M4,GS97-YS180M4,GS97-YS200M4,GS97-YS80M4,GS97-YS90M4,GS97-YVP100M4,GS97-YVP112M4,GS97-YVP132M4,GS97-YVP160M4,GS97-YVP180M4,GS97-YVP200M4,GS97-YVP80M4,GS97-YVP90M4,GS97-YVPEJ100M4,GS97-YVPEJ112M4,GS97-YVPEJ132M4,GS97-YVPEJ160M4,GS97-YVPEJ180M4,GS97-YVPEJ200M4,GS97-YVPEJ80M4,GS97-YVPEJ90M4,SC97-Y1.1KW,SC97-Y1.5KW,SC97-Y100M4,SC97-Y112M4,SC97-Y11KW,SC97-Y132M4,SC97-Y15KW,SC97-Y160M4,SC97-Y18.5KW,SC97-Y180M4,SC97-Y2.2KW,SC97-Y200M4,SC97-Y22KW,SC97-Y3KW,SC97-Y4KW,SC97-Y5.5KW,SC97-Y7.5KW,SC97-Y80M4,SC97-Y90M4,SC97-YEJ100M4,SC97-YEJ112M4,SC97-YEJ132M4,SC97-YEJ160M4,SC97-YEJ180M4,SC97-YEJ200M4,SC97-YEJ80M4,SC97-YEJ90M4,SC97-YS100M4,SC97-YS112M4,SC97-YS132M4,SC97-YS160M4,SC97-YS180M4,SC97-YS200M4,SC97-YS80M4,SC97-YS90M4,SC97-YVP100M4,SC97-YVP112M4,SC97-YVP132M4,SC97-YVP160M4,SC97-YVP180M4,SC97-YVP200M4,SC97-YVP80M4,SC97-YVP90M4,SC97-YVPEJ100M4,SC97-YVPEJ112M4,SC97-YVPEJ132M4,SC97-YVPEJ160M4,SC97-YVPEJ180M4,SC97-YVPEJ200M4,SC97-YVPEJ80M4,SC97-YVPEJ90M4,MTN97-Y1.1KW,MTN97-Y1.5KW,MTN97-Y100M4,MTN97-Y112M4,MTN97-Y11KW,MTN97-Y132M4,MTN97-Y15KW,MTN97-Y160M4,MTN97-Y18.5KW,MTN97-Y180M4,MTN97-Y2.2KW,MTN97-Y200M4,MTN97-Y22KW,MTN97-Y3KW,MTN97-Y4KW,MTN97-Y5.5KW,MTN97-Y7.5KW,MTN97-Y80M4,MTN97-Y90M4,MTN97-YEJ100M4,MTN97-YEJ112M4,MTN97-YEJ132M4,MTN97-YEJ160M4,MTN97-YEJ180M4,MTN97-YEJ200M4,MTN97-YEJ80M4,MTN97-YEJ90M4,MTN97-YS100M4,MTN97-YS112M4,MTN97-YS132M4,MTN97-YS160M4,MTN97-YS180M4,MTN97-YS200M4,MTN97-YS80M4,MTN97-YS90M4,MTN97-YVP100M4,MTN97-YVP112M4,MTN97-YVP132M4,MTN97-YVP160M4,MTN97-YVP180M4,MTN97-YVP200M4,MTN97-YVP80M4,MTN97-YVP90M4,MTN97-YVPEJ100M4,MTN97-YVPEJ112M4,MTN97-YVPEJ132M4,MTN97-YVPEJ160M4,MTN97-YVPEJ180M4,MTN97-YVPEJ200M4,MTN97-YVPEJ80M4,MTN97-YVPEJ90M4,WXS97-WSS1.1KW,WXS97-WSS1.5KW,WXS97-WSS100M4,WXS97-WSS112M4,WXS97-WSS11KW,WXS97-WSS132M4,WXS97-WSS15KW,WXS97-WSS160M4,WXS97-WSS18.5KW,WXS97-WSS180M4,WXS97-WSS2.2KW,WXS97-WSS200M4,WXS97-WSS22KW,WXS97-WSS3KW,WXS97-WSS4KW,WXS97-WSS5.5KW,WXS97-WSS7.5KW,WXS97-WSS80M4,WXS97-WSS90M4,WXS97-WSSB100M4,WXS97-WSSB112M4,WXS97-WSSB132M4,WXS97-WSSB160M4,WXS97-WSSB180M4,WXS97-WSSB200M4,WXS97-WSSB80M4,WXS97-WSSB90M4,WXS97-WSSVP100M4,WXS97-WSSVP112M4,WXS97-WSSVP132M4,WXS97-WSSVP160M4,WXS97-WSSVP180M4,WXS97-WSSVP200M4,WXS97-WSSVP80M4,WXS97-WSSVP90M4,WXS97-WSSVPB100M4,WXS97-WSSVPB112M4,WXS97-WSSVPB132M4,WXS97-WSSVPB160M4,WXS97-WSSVPB180M4,WXS97-WSSVPB200M4,WXS97-WSSVPB80M4,WXS97-WSSVPB90M4。
S97減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-sxiliejiansuji-cn.html
推薦類似型號:S87減速機
關鍵詞:S系列減速機加電機一體化_減速機加司服電機連接_G系列減速機_S型減速機_司服電機減速機_S系列斜齒輪蝸輪蝸桿減速機_S系列減速機器_司服減速機
S系列蝸輪蝸桿減速機型號:S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97齒輪減速機
S系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間
如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求
