S37減速機詳細信息

prevnext

S37減速機

訂購熱線:13360667204
  1. 詳細信息

S37減速機重量:S37減速機重量7公斤,S37減速機配電機重量分別如下

S37減速機配0.12KW電機重量12.5公斤,S37減速機配0.18KW電機重量13公斤,S37減速機配0.25KW電機重量17公斤,S37減速機配0.37KW電機重量17.5公斤,S37減速機配0.55KW電機重量22公斤,S37減速機配0.75KW電機重量23公斤,S37減速機配1.1KW電機重量27公斤。自鎖減速機

S37減速機加油量:可加礦物油

S37減速機M1安裝加0.25升,S37減速機M2安裝加0.4升,S37減速機M3安裝加0.5升,S37減速機M4安裝加0.55升,S37減速機M5安裝加0.4升,S37減速機M6安裝加0.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

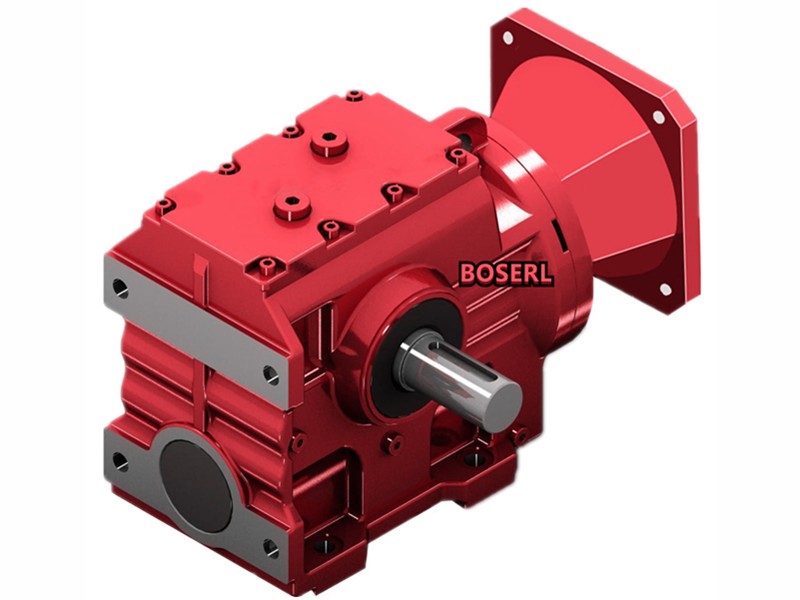

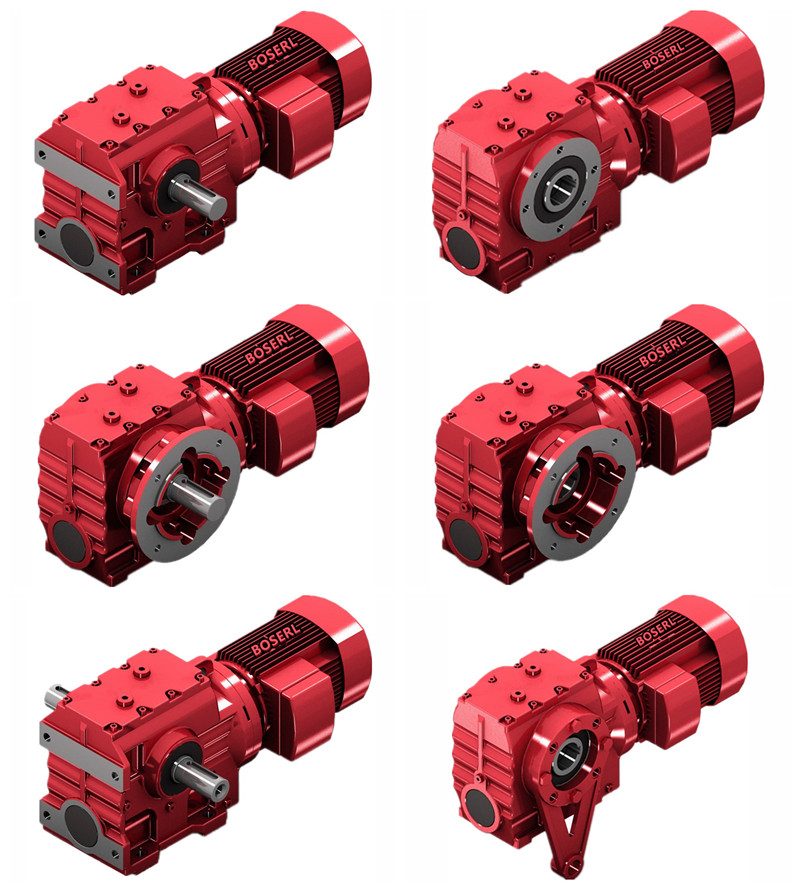

S37減速機實物圖:圖一為S37帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機,圖二SF37具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機,圖三為SA37臥式中孔軸斜齒輪蝸輪蝸桿減速電機,圖四為SAF37立式通孔斜齒輪減速機。


S37減速機型號表示方法:

S37減速機型號結構S37-B1.1KW-4P-減速比-安裝方式-接線盒位置。

S37減速機性能參數表結構說明:E編碼器,T扭力臂,K代表服務系數,Frame size代表基座規格,HF手動釋放裝置帶自鎖功能,TF電機熱保護裝置,S37、SF37、SA37、SAF37減速機機座號,HR手動釋放裝置,N代表徑向負荷,1/min代表輸出轉數。

S37減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。

S37減速機結構圖:


S37減速機參數:

S37減速機電機可配三相/直流/變頻/剎車/防爆/伺服/交流/單相電機S37配0.12KW,S37配0.18KW,S37配0.25KW,S37配0.37KW,S37配0.55KW,S37配0.75KW,S37配1.1KW。

S37減速機減速比157.43比,144.40比,122.94比,106比,98.80比,86.36比,80.96比,71.44比,63.33比,55.93比,53.83比,51.30比,43.68比,37.66比,35.10比,30.68比,28.76比,25.38比,22.50比,19.89比,19.13比,18.24比,15.53比,13.39比,12.48比,10.91比,10.23比,9.02比,8.00比,6.80比,6.33比,5.38比,4.86比,3.97比。

S37減速機輸出轉數8.9轉減速機,9.7轉,11轉,13轉,14轉,16轉,17轉,20轉,22轉,25轉,26轉,27轉,32轉,37轉,40轉,46轉,49轉,55轉,62轉,70轉,73轉,77轉,90轉,105轉,112轉,128轉,137轉,155轉,175轉,206轉,221轉,260轉,288轉,353轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為S系列減速機的輸入)

S37減速機輸出扭矩92N.m,91N.m,88N.m,87N.m,86N.m,85N.m,84N.m,82N.m,81N.m,80N.m,79N.m,78N.m,76N.m,75N.m,74N.m,73N.m,52N.m,71N.m,50N.m,49N.m,48N.m,47N.m,46N.m,45N.m,43N.m,35N.m,34N.m,33N.m,32N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

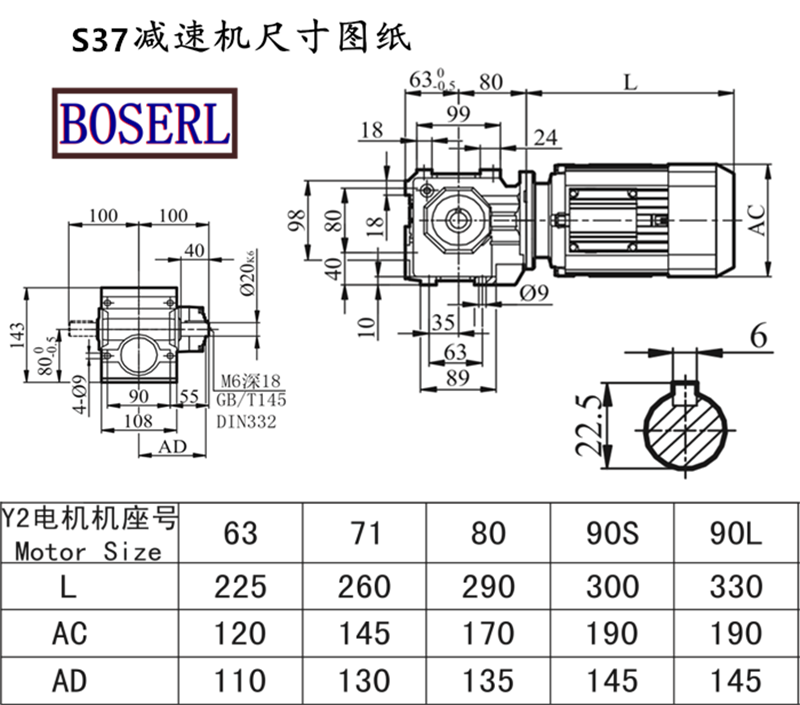

S37減速機尺寸圖紙:高143*寬160(帶輸出軸)*長143S系列減速機


S37減速機型號:S37AQA80,S37AQA100,S37AQA115,S37AQA140,S37AQA160,S37AQA190,S37AQH80,S37AQH100,S37AQH115,S37AQH140,S37AQH160,S37AQH190,JRTS37-Y0.12KW,JRTS37-Y0.18KW,JRTS37-Y0.25KW,JRTS37-Y0.37KW,JRTS37-Y0.55KW,JRTS37-Y0.75KW,JRTS37-Y1.1KW,JRTS37-Y1.5KW,JRTS37-Y63M4,JRTS37-Y71M4,JRTS37-Y80M4,JRTS37-Y90M4,JRTS37-YEJ63M4,JRTS37-YEJ71M4,JRTS37-YEJ80M4,JRTS37-YEJ90M4,JRTS37-YS63M4,JRTS37-YS71M4,JRTS37-YS80M4,JRTS37-YS90M4,JRTS37-YVP63M4,JRTS37-YVP71M4,JRTS37-YVP80M4,JRTS37-YVP90M4,JRTS37-YVPEJ63M4,JRTS37-YVPEJ71M4,JRTS37-YVPEJ80M4,JRTS37-YVPEJ90M4,EWS37-Y0.12KW,EWS37-Y0.18KW,EWS37-Y0.25KW,EWS37-Y0.37KW,EWS37-Y0.55KW,EWS37-Y0.75KW,EWS37-Y1.1KW,EWS37-Y1.5KW,EWS37-Y63M4,EWS37-Y71M4,EWS37-Y80M4,EWS37-Y90M4,EWS37-YEJ63M4,EWS37-YEJ71M4,EWS37-YEJ80M4,EWS37-YEJ90M4,EWS37-YS63M4,EWS37-YS71M4,EWS37-YS80M4,EWS37-YS90M4,EWS37-YVP63M4,EWS37-YVP71M4,EWS37-YVP80M4,EWS37-YVP90M4,EWS37-YVPEJ63M4,EWS37-YVPEJ71M4,EWS37-YVPEJ80M4,EWS37-YVPEJ90M4,SLS37-Y0.12KW,SLS37-Y0.18KW,SLS37-Y0.25KW,SLS37-Y0.37KW,SLS37-Y0.55KW,SLS37-Y0.75KW,SLS37-Y1.1KW,SLS37-Y1.5KW,SLS37-Y63M4,SLS37-Y71M4,SLS37-Y80M4,SLS37-Y90M4,SLS37-YEJ63M4,SLS37-YEJ71M4,SLS37-YEJ80M4,SLS37-YEJ90M4,SLS37-YS63M4,SLS37-YS71M4,SLS37-YS80M4,SLS37-YS90M4,SLS37-YVP63M4,SLS37-YVP71M4,SLS37-YVP80M4,SLS37-YVP90M4,SLS37-YVPEJ63M4,SLS37-YVPEJ71M4,SLS37-YVPEJ80M4,SLS37-YVPEJ90M4,DSZS37-Y0.12KW,DSZS37-Y0.18KW,DSZS37-Y0.25KW,DSZS37-Y0.37KW,DSZS37-Y0.55KW,DSZS37-Y0.75KW,DSZS37-Y1.1KW,DSZS37-Y1.5KW,DSZS37-Y63M4,DSZS37-Y71M4,DSZS37-Y80M4,DSZS37-Y90M4,DSZS37-YEJ63M4,DSZS37-YEJ71M4,DSZS37-YEJ80M4,DSZS37-YEJ90M4,DSZS37-YS63M4,DSZS37-YS71M4,DSZS37-YS80M4,DSZS37-YS90M4,DSZS37-YVP63M4,DSZS37-YVP71M4,DSZS37-YVP80M4,DSZS37-YVP90M4,DSZS37-YVPEJ63M4,DSZS37-YVPEJ71M4,DSZS37-YVPEJ80M4,DSZS37-YVPEJ90M4,BS37-Y0.12KW,BS37-Y0.18KW,BS37-Y0.25KW,BS37-Y0.37KW,BS37-Y0.55KW,BS37-Y0.75KW,BS37-Y1.1KW,BS37-Y1.5KW,BS37-Y63M4,BS37-Y71M4,BS37-Y80M4,BS37-Y90M4,BS37-YEJ63M4,BS37-YEJ71M4,BS37-YEJ80M4,BS37-YEJ90M4,BS37-YS63M4,BS37-YS71M4,BS37-YS80M4,BS37-YS90M4,BS37-YVP63M4,BS37-YVP71M4,BS37-YVP80M4,BS37-YVP90M4,BS37-YVPEJ63M4,BS37-YVPEJ71M4,BS37-YVPEJ80M4,BS37-YVPEJ90M4,GS37-Y0.12KW,GS37-Y0.18KW,GS37-Y0.25KW,GS37-Y0.37KW,GS37-Y0.55KW,GS37-Y0.75KW,GS37-Y1.1KW,GS37-Y1.5KW,GS37-Y63M4,GS37-Y71M4,GS37-Y80M4,GS37-Y90M4,GS37-YEJ63M4,GS37-YEJ71M4,GS37-YEJ80M4,GS37-YEJ90M4,GS37-YS63M4,GS37-YS71M4,GS37-YS80M4,GS37-YS90M4,GS37-YVP63M4,GS37-YVP71M4,GS37-YVP80M4,GS37-YVP90M4,GS37-YVPEJ63M4,GS37-YVPEJ71M4,GS37-YVPEJ80M4,GS37-YVPEJ90M4,SC37-Y0.12KW,SC37-Y0.18KW,SC37-Y0.25KW,SC37-Y0.37KW,SC37-Y0.55KW,SC37-Y0.75KW,SC37-Y1.1KW,SC37-Y1.5KW,SC37-Y63M4,SC37-Y71M4,SC37-Y80M4,SC37-Y90M4,SC37-YEJ63M4,SC37-YEJ71M4,SC37-YEJ80M4,SC37-YEJ90M4,SC37-YS63M4,SC37-YS71M4,SC37-YS80M4,SC37-YS90M4,SC37-YVP63M4,SC37-YVP71M4,SC37-YVP80M4,SC37-YVP90M4,SC37-YVPEJ63M4,SC37-YVPEJ71M4,SC37-YVPEJ80M4,SC37-YVPEJ90M4,MTN37-Y0.12KW,MTN37-Y0.18KW,MTN37-Y0.25KW,MTN37-Y0.37KW,MTN37-Y0.55KW,MTN37-Y0.75KW,MTN37-Y1.1KW,MTN37-Y1.5KW,MTN37-Y63M4,MTN37-Y71M4,MTN37-Y80M4,MTN37-Y90M4,MTN37-YEJ63M4,MTN37-YEJ71M4,MTN37-YEJ80M4,MTN37-YEJ90M4,MTN37-YS63M4,MTN37-YS71M4,MTN37-YS80M4,MTN37-YS90M4,MTN37-YVP63M4,MTN37-YVP71M4,MTN37-YVP80M4,MTN37-YVP90M4,MTN37-YVPEJ63M4,MTN37-YVPEJ71M4,MTN37-YVPEJ80M4,MTN37-YVPEJ90M4,WXS37-WSS0.12KW,WXS37-WSS0.18KW,WXS37-WSS0.25KW,WXS37-WSS0.37KW,WXS37-WSS0.55KW,WXS37-WSS0.75KW,WXS37-WSS1.1KW,WXS37-WSS1.5KW,WXS37-WSS63M4,WXS37-WSS71M4,WXS37-WSS80M4,WXS37-WSS90M4,WXS37-WSSB63M4,WXS37-WSSB71M4,WXS37-WSSB80M4,WXS37-WSSB90M4,WXS37-WSSVP63M4,WXS37-WSSVP71M4,WXS37-WSSVP80M4,WXS37-WSSVP90M4,WXS37-WSSVPB63M4,WXS37-WSSVPB71M4,WXS37-WSSVPB80M4,WXS37-WSSVPB90M4。

S37減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-sxiliejiansuji-cn.html

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

推薦類似型號:S97減速機

關鍵詞:S系列減速機加電機一體化_減速機加司服電機連接_G系列減速機_S型減速機_司服電機減速機_S系列斜齒輪蝸輪蝸桿減速機_S系列減速機器_司服減速機

S系列蝸輪蝸桿減速機型號:S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97齒輪減速機

S系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   S37減速機 S37減速電機 S37減速器 S37減速箱 S37減速機生產廠家
