K97減速機詳細信息

prevnext

K97減速機

訂購熱線:13360667204
  1. 詳細信息

K97減速機重量:K97減速機重量130公斤,K97減速機配電機重量分別如下

K97減速機配0.75KW電機重量146公斤,K97減速機配1.1KW電機重量150公斤,K97減速機配1.5KW電機重量153公斤,K97減速機配2.2KW電機重量162公斤,K97減速機配3KW電機重量165公斤,K97減速機配4KW電機重量176公斤,K97減速機配5.5KW電機重量190公斤,K97減速機配7.5KW電機重量203公斤,K97減速機配11KW電機重量245公斤,K97減速機配15KW電機重量265公斤,K97減速機配18.5KW電機重量302公斤,K97減速機配22KW電機重量315公斤,K97減速機配30KW電機重量383公斤。

K97減速機加油量:可加礦物油直角減速機

K97減速機M1安裝加7升,K97減速機M2安裝加14升,K97減速機M3安裝加15.7升,K97減速機M4安裝加20.9升,K97減速機M5安裝加15.7升,K97減速機M6安裝加15.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

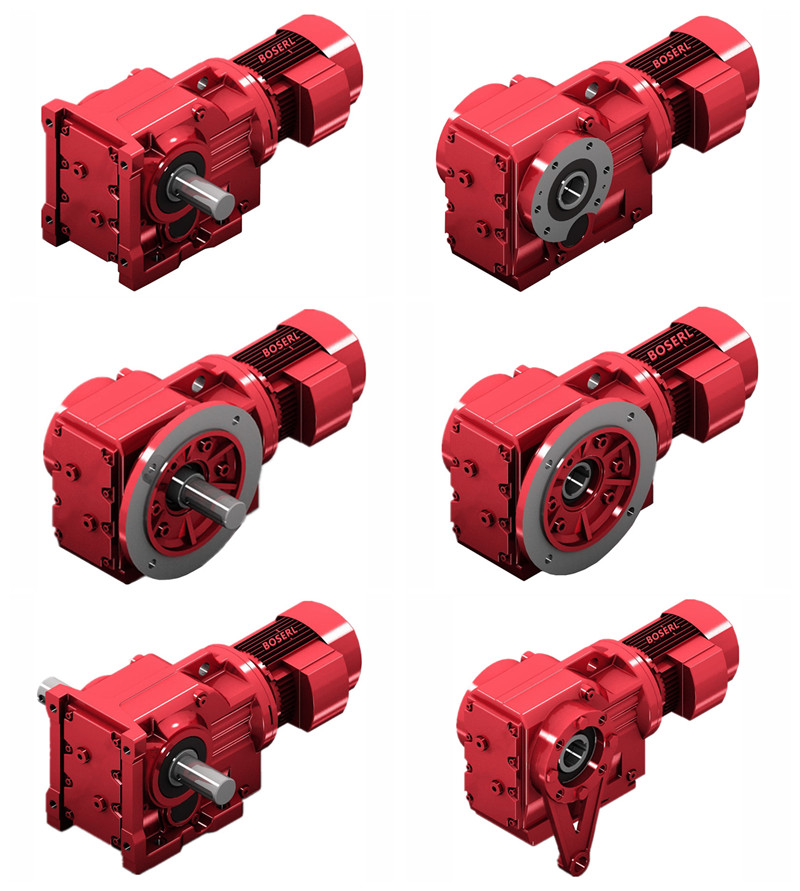

K97減速機實物圖:圖一為K97臥式安裝螺旋錐齒輪減速電機,圖二KF97立式安裝實心軸輸出螺旋錐齒輪減速電機,圖三為KA97臥式安裝空心軸螺旋錐齒輪減速電機,圖四為KAF97立式安裝直角空心軸螺旋錐齒輪減速機。


K97減速機型號表示方法:

K97減速機型號結構K97-B30KW-4P-減速比-安裝方式-接線盒位置。

K97減速機性能參數表結構說明:RS逆止器,V強制冷卻風扇,C防雨罩,Input Configuration代表輸入配置,TF電機熱保護裝置,K97、KF97、KA97、KAF97減速機機座號,N代表徑向負荷,HR手動釋放裝置,1/min代表輸出轉數,HF手動釋放裝置帶自鎖功能。

K97減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。

K97減速機結構圖:


K97減速機參數:

K97減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K97配K97配0.75KW,K97配1.1KW,K97配1.5KW,K97配2.2KW,K97配3KW,K97配4KW,K97配5.5KW,K97配7.5KW,K97配11KW,K97配15KW,K97配18.5KW,K97配22KW,K97配30KW。

K97減速機減速比176.05比,153.21比,140.28比,123.93比,105.13比,96.08比,86.52比,77.89比,70.54比,62.55比,47.93比,41.87比,38.3比,34.23比,30.82比,27.91比,24.75比,22.37比,18.96比,16.56比,13.85比,11.99比,10.41比,8.71比,7.54比。

K97減速機輸出轉數8轉,9.1轉,10轉,11轉,13轉,14轉,16轉,18轉,20轉,22轉,25轉,29轉,33轉,37轉,41轉,45轉,50轉,57轉,63轉,74轉,85轉,101轉,117轉,134轉,161轉,186轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為K系列減速機的輸入)

K97減速機輸出扭矩4300N.m,3890N.m,2870N.m,2660N.m,2400N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

K97減速機尺寸圖紙:高417*寬436(帶輸出軸)*長435K系列減速機


K97減速機型號:K97AQA80,K97AQA100,K97AQA115,K97AQA140,K97AQA160,K97AQA190,K97AQH80,K97AQH100,K97AQH115,K97AQH140,K97AQH160,K97AQH190,JRTK97-Y1.1KW,JRTK97-Y1.5KW,JRTK97-Y100M4,JRTK97-Y112M4,JRTK97-Y11KW,JRTK97-Y132M4,JRTK97-Y15KW,JRTK97-Y160M4,JRTK97-Y18.5KW,JRTK97-Y180M4,JRTK97-Y2.2KW,JRTK97-Y200M4,JRTK97-Y22KW,JRTK97-Y30KW,JRTK97-Y3KW,JRTK97-Y4KW,JRTK97-Y5.5KW,JRTK97-Y7.5KW,JRTK97-Y80M4,JRTK97-Y90M4,JRTK97-YEJ100M4,JRTK97-YEJ112M4,JRTK97-YEJ132M4,JRTK97-YEJ160M4,JRTK97-YEJ180M4,JRTK97-YEJ200M4,JRTK97-YEJ80M4,JRTK97-YEJ90M4,JRTK97-YS100M4,JRTK97-YS112M4,JRTK97-YS132M4,JRTK97-YS160M4,JRTK97-YS180M4,JRTK97-YS200M4,JRTK97-YS80M4,JRTK97-YS90M4,JRTK97-YVP100M4,JRTK97-YVP112M4,JRTK97-YVP132M4,JRTK97-YVP160M4,JRTK97-YVP180M4,JRTK97-YVP200M4,JRTK97-YVP80M4,JRTK97-YVP90M4,JRTK97-YVPEJ100M4,JRTK97-YVPEJ112M4,JRTK97-YVPEJ132M4,JRTK97-YVPEJ160M4,JRTK97-YVPEJ180M4,JRTK97-YVPEJ200M4,JRTK97-YVPEJ80M4,JRTK97-YVPEJ90M4,EWK97-Y1.1KW,EWK97-Y1.5KW,EWK97-Y100M4,EWK97-Y112M4,EWK97-Y11KW,EWK97-Y132M4,EWK97-Y15KW,EWK97-Y160M4,EWK97-Y18.5KW,EWK97-Y180M4,EWK97-Y2.2KW,EWK97-Y200M4,EWK97-Y22KW,EWK97-Y30KW,EWK97-Y3KW,EWK97-Y4KW,EWK97-Y5.5KW,EWK97-Y7.5KW,EWK97-Y80M4,EWK97-Y90M4,EWK97-YEJ100M4,EWK97-YEJ112M4,EWK97-YEJ132M4,EWK97-YEJ160M4,EWK97-YEJ180M4,EWK97-YEJ200M4,EWK97-YEJ80M4,EWK97-YEJ90M4,EWK97-YS100M4,EWK97-YS112M4,EWK97-YS132M4,EWK97-YS160M4,EWK97-YS180M4,EWK97-YS200M4,EWK97-YS80M4,EWK97-YS90M4,EWK97-YVP100M4,EWK97-YVP112M4,EWK97-YVP132M4,EWK97-YVP160M4,EWK97-YVP180M4,EWK97-YVP200M4,EWK97-YVP80M4,EWK97-YVP90M4,EWK97-YVPEJ100M4,EWK97-YVPEJ112M4,EWK97-YVPEJ132M4,EWK97-YVPEJ160M4,EWK97-YVPEJ180M4,EWK97-YVPEJ200M4,EWK97-YVPEJ80M4,EWK97-YVPEJ90M4,SLK97-Y1.1KW,SLK97-Y1.5KW,SLK97-Y100M4,SLK97-Y112M4,SLK97-Y11KW,SLK97-Y132M4,SLK97-Y15KW,SLK97-Y160M4,SLK97-Y18.5KW,SLK97-Y180M4,SLK97-Y2.2KW,SLK97-Y200M4,SLK97-Y22KW,SLK97-Y30KW,SLK97-Y3KW,SLK97-Y4KW,SLK97-Y5.5KW,SLK97-Y7.5KW,SLK97-Y80M4,SLK97-Y90M4,SLK97-YEJ100M4,SLK97-YEJ112M4,SLK97-YEJ132M4,SLK97-YEJ160M4,SLK97-YEJ180M4,SLK97-YEJ200M4,SLK97-YEJ80M4,SLK97-YEJ90M4,SLK97-YS100M4,SLK97-YS112M4,SLK97-YS132M4,SLK97-YS160M4,SLK97-YS180M4,SLK97-YS200M4,SLK97-YS80M4,SLK97-YS90M4,SLK97-YVP100M4,SLK97-YVP112M4,SLK97-YVP132M4,SLK97-YVP160M4,SLK97-YVP180M4,SLK97-YVP200M4,SLK97-YVP80M4,SLK97-YVP90M4,SLK97-YVPEJ100M4,SLK97-YVPEJ112M4,SLK97-YVPEJ132M4,SLK97-YVPEJ160M4,SLK97-YVPEJ180M4,SLK97-YVPEJ200M4,SLK97-YVPEJ80M4,SLK97-YVPEJ90M4,DSZK97-Y1.1KW,DSZK97-Y1.5KW,DSZK97-Y100M4,DSZK97-Y112M4,DSZK97-Y11KW,DSZK97-Y132M4,DSZK97-Y15KW,DSZK97-Y160M4,DSZK97-Y18.5KW,DSZK97-Y180M4,DSZK97-Y2.2KW,DSZK97-Y200M4,DSZK97-Y22KW,DSZK97-Y30KW,DSZK97-Y3KW,DSZK97-Y4KW,DSZK97-Y5.5KW,DSZK97-Y7.5KW,DSZK97-Y80M4,DSZK97-Y90M4,DSZK97-YEJ100M4,DSZK97-YEJ112M4,DSZK97-YEJ132M4,DSZK97-YEJ160M4,DSZK97-YEJ180M4,DSZK97-YEJ200M4,DSZK97-YEJ80M4,DSZK97-YEJ90M4,DSZK97-YS100M4,DSZK97-YS112M4,DSZK97-YS132M4,DSZK97-YS160M4,DSZK97-YS180M4,DSZK97-YS200M4,DSZK97-YS80M4,DSZK97-YS90M4,DSZK97-YVP100M4,DSZK97-YVP112M4,DSZK97-YVP132M4,DSZK97-YVP160M4,DSZK97-YVP180M4,DSZK97-YVP200M4,DSZK97-YVP80M4,DSZK97-YVP90M4,DSZK97-YVPEJ100M4,DSZK97-YVPEJ112M4,DSZK97-YVPEJ132M4,DSZK97-YVPEJ160M4,DSZK97-YVPEJ180M4,DSZK97-YVPEJ200M4,DSZK97-YVPEJ80M4,DSZK97-YVPEJ90M4,BK97-Y1.1KW,BK97-Y1.5KW,BK97-Y100M4,BK97-Y112M4,BK97-Y11KW,BK97-Y132M4,BK97-Y15KW,BK97-Y160M4,BK97-Y18.5KW,BK97-Y180M4,BK97-Y2.2KW,BK97-Y200M4,BK97-Y22KW,BK97-Y30KW,BK97-Y3KW,BK97-Y4KW,BK97-Y5.5KW,BK97-Y7.5KW,BK97-Y80M4,BK97-Y90M4,BK97-YEJ100M4,BK97-YEJ112M4,BK97-YEJ132M4,BK97-YEJ160M4,BK97-YEJ180M4,BK97-YEJ200M4,BK97-YEJ80M4,BK97-YEJ90M4,BK97-YS100M4,BK97-YS112M4,BK97-YS132M4,BK97-YS160M4,BK97-YS180M4,BK97-YS200M4,BK97-YS80M4,BK97-YS90M4,BK97-YVP100M4,BK97-YVP112M4,BK97-YVP132M4,BK97-YVP160M4,BK97-YVP180M4,BK97-YVP200M4,BK97-YVP80M4,BK97-YVP90M4,BK97-YVPEJ100M4,BK97-YVPEJ112M4,BK97-YVPEJ132M4,BK97-YVPEJ160M4,BK97-YVPEJ180M4,BK97-YVPEJ200M4,BK97-YVPEJ80M4,BK97-YVPEJ90M4,GK97-Y1.1KW,GK97-Y1.5KW,GK97-Y100M4,GK97-Y112M4,GK97-Y11KW,GK97-Y132M4,GK97-Y15KW,GK97-Y160M4,GK97-Y18.5KW,GK97-Y180M4,GK97-Y2.2KW,GK97-Y200M4,GK97-Y22KW,GK97-Y30KW,GK97-Y3KW,GK97-Y4KW,GK97-Y5.5KW,GK97-Y7.5KW,GK97-Y80M4,GK97-Y90M4,GK97-YEJ100M4,GK97-YEJ112M4,GK97-YEJ132M4,GK97-YEJ160M4,GK97-YEJ180M4,GK97-YEJ200M4,GK97-YEJ80M4,GK97-YEJ90M4,GK97-YS100M4,GK97-YS112M4,GK97-YS132M4,GK97-YS160M4,GK97-YS180M4,GK97-YS200M4,GK97-YS80M4,GK97-YS90M4,GK97-YVP100M4,GK97-YVP112M4,GK97-YVP132M4,GK97-YVP160M4,GK97-YVP180M4,GK97-YVP200M4,GK97-YVP80M4,GK97-YVP90M4,GK97-YVPEJ100M4,GK97-YVPEJ112M4,GK97-YVPEJ132M4,GK97-YVPEJ160M4,GK97-YVPEJ180M4,GK97-YVPEJ200M4,GK97-YVPEJ80M4,GK97-YVPEJ90M4,KC97-Y1.1KW,KC97-Y1.5KW,KC97-Y100M4,KC97-Y112M4,KC97-Y11KW,KC97-Y132M4,KC97-Y15KW,KC97-Y160M4,KC97-Y18.5KW,KC97-Y180M4,KC97-Y2.2KW,KC97-Y200M4,KC97-Y22KW,KC97-Y30KW,KC97-Y3KW,KC97-Y4KW,KC97-Y5.5KW,KC97-Y7.5KW,KC97-Y80M4,KC97-Y90M4,KC97-YEJ100M4,KC97-YEJ112M4,KC97-YEJ132M4,KC97-YEJ160M4,KC97-YEJ180M4,KC97-YEJ200M4,KC97-YEJ80M4,KC97-YEJ90M4,KC97-YS100M4,KC97-YS112M4,KC97-YS132M4,KC97-YS160M4,KC97-YS180M4,KC97-YS200M4,KC97-YS80M4,KC97-YS90M4,KC97-YVP100M4,KC97-YVP112M4,KC97-YVP132M4,KC97-YVP160M4,KC97-YVP180M4,KC97-YVP200M4,KC97-YVP80M4,KC97-YVP90M4,KC97-YVPEJ100M4,KC97-YVPEJ112M4,KC97-YVPEJ132M4,KC97-YVPEJ160M4,KC97-YVPEJ180M4,KC97-YVPEJ200M4,KC97-YVPEJ80M4,KC97-YVPEJ90M4,MTJ97-Y1.1KW,MTJ97-Y1.5KW,MTJ97-Y100M4,MTJ97-Y112M4,MTJ97-Y11KW,MTJ97-Y132M4,MTJ97-Y15KW,MTJ97-Y160M4,MTJ97-Y18.5KW,MTJ97-Y180M4,MTJ97-Y2.2KW,MTJ97-Y200M4,MTJ97-Y22KW,MTJ97-Y30KW,MTJ97-Y3KW,MTJ97-Y4KW,MTJ97-Y5.5KW,MTJ97-Y7.5KW,MTJ97-Y80M4,MTJ97-Y90M4,MTJ97-YEJ100M4,MTJ97-YEJ112M4,MTJ97-YEJ132M4,MTJ97-YEJ160M4,MTJ97-YEJ180M4,MTJ97-YEJ200M4,MTJ97-YEJ80M4,MTJ97-YEJ90M4,MTJ97-YS100M4,MTJ97-YS112M4,MTJ97-YS132M4,MTJ97-YS160M4,MTJ97-YS180M4,MTJ97-YS200M4,MTJ97-YS80M4,MTJ97-YS90M4,MTJ97-YVP100M4,MTJ97-YVP112M4,MTJ97-YVP132M4,MTJ97-YVP160M4,MTJ97-YVP180M4,MTJ97-YVP200M4,MTJ97-YVP80M4,MTJ97-YVP90M4,MTJ97-YVPEJ100M4,MTJ97-YVPEJ112M4,MTJ97-YVPEJ132M4,MTJ97-YVPEJ160M4,MTJ97-YVPEJ180M4,MTJ97-YVPEJ200M4,MTJ97-YVPEJ80M4,MTJ97-YVPEJ90M4,WXK97-WSS1.1KW,WXK97-WSS1.5KW,WXK97-WSS100M4,WXK97-WSS112M4,WXK97-WSS11KW,WXK97-WSS132M4,WXK97-WSS15KW,WXK97-WSS160M4,WXK97-WSS18.5KW,WXK97-WSS180M4,WXK97-WSS2.2KW,WXK97-WSS200M4,WXK97-WSS22KW,WXK97-WSS30KW,WXK97-WSS3KW,WXK97-WSS4KW,WXK97-WSS5.5KW,WXK97-WSS7.5KW,WXK97-WSS80M4,WXK97-WSS90M4,WXK97-WSSB100M4,WXK97-WSSB112M4,WXK97-WSSB132M4,WXK97-WSSB160M4,WXK97-WSSB180M4,WXK97-WSSB200M4,WXK97-WSSB80M4,WXK97-WSSB90M4,WXK97-WSSVP100M4,WXK97-WSSVP112M4,WXK97-WSSVP132M4,WXK97-WSSVP160M4,WXK97-WSSVP180M4,WXK97-WSSVP200M4,WXK97-WSSVP80M4,WXK97-WSSVP90M4,WXK97-WSSVPB100M4,WXK97-WSSVPB112M4,WXK97-WSSVPB132M4,WXK97-WSSVPB160M4,WXK97-WSSVPB180M4,WXK97-WSSVPB200M4,WXK97-WSSVPB80M4,WXK97-WSSVPB90M4。

K97減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-kxiliejiansuji-cn.html

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

推薦類似型號:K87減速機

關鍵詞:K系列減速機加電機一體化_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_螺旋錐齒輪減速器_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器

K系列齒輪減速機型號:K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機

K系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   K97減速機 K97減速電機 K97減速器 K97減速箱 K97減速機生產廠家
