K47減速機詳細信息
K47減速機
K47減速機重量:K47減速機重量20公斤,K47減速機配電機重量分別如下
K47減速機配0.12KW電機重量25.5公斤,K47減速機配0.18KW電機重量26公斤,K47減速機配0.25KW電機重量30公斤,K47減速機配0.37KW電機重量30.5公斤,K47減速機配0.55KW電機重量35公斤,K47減速機配0.75KW電機重量36公斤,K47減速機配1.1KW電機重量40公斤,K47減速機配1.5KW電機重量43公斤,K47減速機配2.2KW電機重量52公斤,K47減速機配3KW電機重量55公斤。
K47減速機加油量:可加礦物油
K47減速機M1安裝加0.8升,K47減速機M2安裝加1.3升,K47減速機M3安裝加1.5升,K47減速機M4安裝加2升,K47減速機M5安裝加1.6升,K47減速機M6安裝加1.6升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。
K47減速機實物圖:圖一為K47臥式安裝螺旋錐齒輪減速電機,圖二KF47立式安裝實心軸輸出螺旋錐齒輪減速電機,圖三為KA47臥式安裝空心軸螺旋錐齒輪減速電機,圖四為KAF47立式安裝直角空心軸螺旋錐齒輪減速機。
K47減速機型號表示方法:
K47減速機型號結構K47-B2.2KW-4P-減速比-安裝方式-接線盒位置。
K47減速機性能參數表結構說明:RS逆止器,V強制冷卻風扇,C防雨罩,Input Configuration代表輸入配置,TF電機熱保護裝置,K47、KF47、KA47、KAF47減速機機座號,N代表徑向負荷,HR手動釋放裝置,1/min代表輸出轉數,HF手動釋放裝置帶自鎖功能。直角減速機
K47減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位??商峁㏒和N兩種進線方位,其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供。
K47減速機結構圖:
K47減速機參數:
K47減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K47配0.12KW,K47配0.18KW,K47配0.25KW,K47配0.37KW,K47配0.55KW,K47配0.75KW,K47配1.1KW,K47配1.5KW,K47配2.2KW,K47配3KW。
K47減速機減速比131.87比,121.48比,104.37比,90.86比,85.12比,75.20比,69.84比,63.30比,56.83比,48.95比,46.03比,39.61比,35.39比,31.30比,29.32比,25.91比,24.06比,21.81比,19.58比,16.86比,15.86比,13.65比,12.19比,11.77比,10.56比,9.10比,8.56比,7.36比,6.58比,5.81比,4.64比。
K47減速機輸出轉數11轉,12轉,13轉,15轉,16轉,19轉,20轉,22轉,25轉,29轉,30轉,35轉,40轉,45轉,48轉,54轉,58轉,64轉,72轉,83轉,88轉,103轉,115轉,119轉,133轉,154轉,164轉,190轉,213轉,241轉,302轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為K系列減速機的輸入)
K47減速機輸出扭矩5920N.m,5700N.m,5520N.m,5170N.m,4970N.m,4710N.m,4440N.m,4220N.m,4080N.m,3890N.m,3720N.m,4060N.m,3830N.m,3540N.m,3500N.m,3380N.m,3270N.m,3140N.m,2980N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

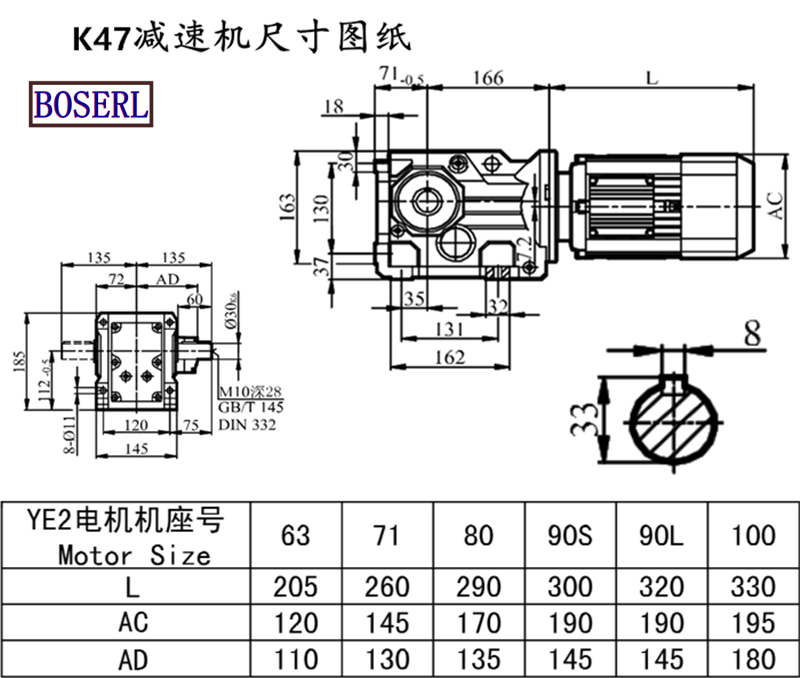

K47減速機尺寸圖紙:高185*寬208(帶輸出軸)*長237K系列減速機
K47減速機型號:K47AQA80,K47AQA100,K47AQA115,K47AQA140,K47AQA160,K47AQA190,K47AQH80,K47AQH100,K47AQH115,K47AQH140,K47AQH160,K47AQH190,JRTK47-Y0.12KW,JRTK47-Y0.18KW,JRTK47-Y0.25KW,JRTK47-Y0.37KW,JRTK47-Y0.55KW,JRTK47-Y0.75KW,JRTK47-Y1.1KW,JRTK47-Y1.5KW,JRTK47-Y100M4,JRTK47-Y2.2KW,JRTK47-Y3KW,JRTK47-Y63M4,JRTK47-Y71M4,JRTK47-Y80M4,JRTK47-Y90M4,JRTK47-YEJ100M4,JRTK47-YEJ63M4,JRTK47-YEJ71M4,JRTK47-YEJ80M4,JRTK47-YEJ90M4,JRTK47-YS100M4,JRTK47-YS63M4,JRTK47-YS71M4,JRTK47-YS80M4,JRTK47-YS90M4,JRTK47-YVP100M4,JRTK47-YVP63M4,JRTK47-YVP71M4,JRTK47-YVP80M4,JRTK47-YVP90M4,JRTK47-YVPEJ100M4,JRTK47-YVPEJ63M4,JRTK47-YVPEJ71M4,JRTK47-YVPEJ80M4,JRTK47-YVPEJ90M4,EWK47-Y0.12KW,EWK47-Y0.18KW,EWK47-Y0.25KW,EWK47-Y0.37KW,EWK47-Y0.55KW,EWK47-Y0.75KW,EWK47-Y1.1KW,EWK47-Y1.5KW,EWK47-Y100M4,EWK47-Y2.2KW,EWK47-Y3KW,EWK47-Y63M4,EWK47-Y71M4,EWK47-Y80M4,EWK47-Y90M4,EWK47-YEJ100M4,EWK47-YEJ63M4,EWK47-YEJ71M4,EWK47-YEJ80M4,EWK47-YEJ90M4,EWK47-YS100M4,EWK47-YS63M4,EWK47-YS71M4,EWK47-YS80M4,EWK47-YS90M4,EWK47-YVP100M4,EWK47-YVP63M4,EWK47-YVP71M4,EWK47-YVP80M4,EWK47-YVP90M4,EWK47-YVPEJ100M4,EWK47-YVPEJ63M4,EWK47-YVPEJ71M4,EWK47-YVPEJ80M4,EWK47-YVPEJ90M4,SLK47-Y0.12KW,SLK47-Y0.18KW,SLK47-Y0.25KW,SLK47-Y0.37KW,SLK47-Y0.55KW,SLK47-Y0.75KW,SLK47-Y1.1KW,SLK47-Y1.5KW,SLK47-Y100M4,SLK47-Y2.2KW,SLK47-Y3KW,SLK47-Y63M4,SLK47-Y71M4,SLK47-Y80M4,SLK47-Y90M4,SLK47-YEJ100M4,SLK47-YEJ63M4,SLK47-YEJ71M4,SLK47-YEJ80M4,SLK47-YEJ90M4,SLK47-YS100M4,SLK47-YS63M4,SLK47-YS71M4,SLK47-YS80M4,SLK47-YS90M4,SLK47-YVP100M4,SLK47-YVP63M4,SLK47-YVP71M4,SLK47-YVP80M4,SLK47-YVP90M4,SLK47-YVPEJ100M4,SLK47-YVPEJ63M4,SLK47-YVPEJ71M4,SLK47-YVPEJ80M4,SLK47-YVPEJ90M4,DSZK47-Y0.12KW,DSZK47-Y0.18KW,DSZK47-Y0.25KW,DSZK47-Y0.37KW,DSZK47-Y0.55KW,DSZK47-Y0.75KW,DSZK47-Y1.1KW,DSZK47-Y1.5KW,DSZK47-Y100M4,DSZK47-Y2.2KW,DSZK47-Y3KW,DSZK47-Y63M4,DSZK47-Y71M4,DSZK47-Y80M4,DSZK47-Y90M4,DSZK47-YEJ100M4,DSZK47-YEJ63M4,DSZK47-YEJ71M4,DSZK47-YEJ80M4,DSZK47-YEJ90M4,DSZK47-YS100M4,DSZK47-YS63M4,DSZK47-YS71M4,DSZK47-YS80M4,DSZK47-YS90M4,DSZK47-YVP100M4,DSZK47-YVP63M4,DSZK47-YVP71M4,DSZK47-YVP80M4,DSZK47-YVP90M4,DSZK47-YVPEJ100M4,DSZK47-YVPEJ63M4,DSZK47-YVPEJ71M4,DSZK47-YVPEJ80M4,DSZK47-YVPEJ90M4,BK47-Y0.12KW,BK47-Y0.18KW,BK47-Y0.25KW,BK47-Y0.37KW,BK47-Y0.55KW,BK47-Y0.75KW,BK47-Y1.1KW,BK47-Y1.5KW,BK47-Y100M4,BK47-Y2.2KW,BK47-Y3KW,BK47-Y63M4,BK47-Y71M4,BK47-Y80M4,BK47-Y90M4,BK47-YEJ100M4,BK47-YEJ63M4,BK47-YEJ71M4,BK47-YEJ80M4,BK47-YEJ90M4,BK47-YS100M4,BK47-YS63M4,BK47-YS71M4,BK47-YS80M4,BK47-YS90M4,BK47-YVP100M4,BK47-YVP63M4,BK47-YVP71M4,BK47-YVP80M4,BK47-YVP90M4,BK47-YVPEJ100M4,BK47-YVPEJ63M4,BK47-YVPEJ71M4,BK47-YVPEJ80M4,BK47-YVPEJ90M4,GK47-Y0.12KW,GK47-Y0.18KW,GK47-Y0.25KW,GK47-Y0.37KW,GK47-Y0.55KW,GK47-Y0.75KW,GK47-Y1.1KW,GK47-Y1.5KW,GK47-Y100M4,GK47-Y2.2KW,GK47-Y3KW,GK47-Y63M4,GK47-Y71M4,GK47-Y80M4,GK47-Y90M4,GK47-YEJ100M4,GK47-YEJ63M4,GK47-YEJ71M4,GK47-YEJ80M4,GK47-YEJ90M4,GK47-YS100M4,GK47-YS63M4,GK47-YS71M4,GK47-YS80M4,GK47-YS90M4,GK47-YVP100M4,GK47-YVP63M4,GK47-YVP71M4,GK47-YVP80M4,GK47-YVP90M4,GK47-YVPEJ100M4,GK47-YVPEJ63M4,GK47-YVPEJ71M4,GK47-YVPEJ80M4,GK47-YVPEJ90M4,KC47-Y0.12KW,KC47-Y0.18KW,KC47-Y0.25KW,KC47-Y0.37KW,KC47-Y0.55KW,KC47-Y0.75KW,KC47-Y1.1KW,KC47-Y1.5KW,KC47-Y100M4,KC47-Y2.2KW,KC47-Y3KW,KC47-Y63M4,KC47-Y71M4,KC47-Y80M4,KC47-Y90M4,KC47-YEJ100M4,KC47-YEJ63M4,KC47-YEJ71M4,KC47-YEJ80M4,KC47-YEJ90M4,KC47-YS100M4,KC47-YS63M4,KC47-YS71M4,KC47-YS80M4,KC47-YS90M4,KC47-YVP100M4,KC47-YVP63M4,KC47-YVP71M4,KC47-YVP80M4,KC47-YVP90M4,KC47-YVPEJ100M4,KC47-YVPEJ63M4,KC47-YVPEJ71M4,KC47-YVPEJ80M4,KC47-YVPEJ90M4,MTJ47-Y0.12KW,MTJ47-Y0.18KW,MTJ47-Y0.25KW,MTJ47-Y0.37KW,MTJ47-Y0.55KW,MTJ47-Y0.75KW,MTJ47-Y1.1KW,MTJ47-Y1.5KW,MTJ47-Y100M4,MTJ47-Y2.2KW,MTJ47-Y3KW,MTJ47-Y63M4,MTJ47-Y71M4,MTJ47-Y80M4,MTJ47-Y90M4,MTJ47-YEJ100M4,MTJ47-YEJ63M4,MTJ47-YEJ71M4,MTJ47-YEJ80M4,MTJ47-YEJ90M4,MTJ47-YS100M4,MTJ47-YS63M4,MTJ47-YS71M4,MTJ47-YS80M4,MTJ47-YS90M4,MTJ47-YVP100M4,MTJ47-YVP63M4,MTJ47-YVP71M4,MTJ47-YVP80M4,MTJ47-YVP90M4,MTJ47-YVPEJ100M4,MTJ47-YVPEJ63M4,MTJ47-YVPEJ71M4,MTJ47-YVPEJ80M4,MTJ47-YVPEJ90M4,WXK47-WSS0.12KW,WXK47-WSS0.18KW,WXK47-WSS0.25KW,WXK47-WSS0.37KW,WXK47-WSS0.55KW,WXK47-WSS0.75KW,WXK47-WSS1.1KW,WXK47-WSS1.5KW,WXK47-WSS100M4,WXK47-WSS2.2KW,WXK47-WSS3KW,WXK47-WSS63M4,WXK47-WSS71M4,WXK47-WSS80M4,WXK47-WSS90M4,WXK47-WSSB100M4,WXK47-WSSB63M4,WXK47-WSSB71M4,WXK47-WSSB80M4,WXK47-WSSB90M4,WXK47-WSSVP100M4,WXK47-WSSVP63M4,WXK47-WSSVP71M4,WXK47-WSSVP80M4,WXK47-WSSVP90M4,WXK47-WSSVPB100M4,WXK47-WSSVPB63M4,WXK47-WSSVPB71M4,WXK47-WSSVPB80M4,WXK47-WSSVPB90M4。
