F87減速機詳細信息
F87減速機
F87減速機重量:F87減速機重量150公斤,F87減速機配電機重量分別如下
F87減速機配0.75KW電機重量166公斤,F87減速機配1.1KW電機重量170公斤,F87減速機配1.5KW電機重量173公斤,F87減速機配2.2KW電機重量182公斤,F87減速機配3KW電機重量188公斤,F87減速機配4KW電機重量196公斤,F87減速機配5.5KW電機重量210公斤,F87減速機配7.5KW電機重量223公斤,F87減速機配11KW電機重量265公斤,F87減速機配15KW電機重量285公斤,F87減速機配18.5KW電機重量322公斤,F87減速機配22KW電機重量335公斤。齒輪減速機
F87減速機加油量:可加礦物油
F87減速機M1安裝加10.8升,F87減速機M2安裝加13升,F87減速機M3安裝加7.7升,F87減速機M4安裝加13.8升,F87減速機M5安裝加10.8升,F87減速機M6安裝加11升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

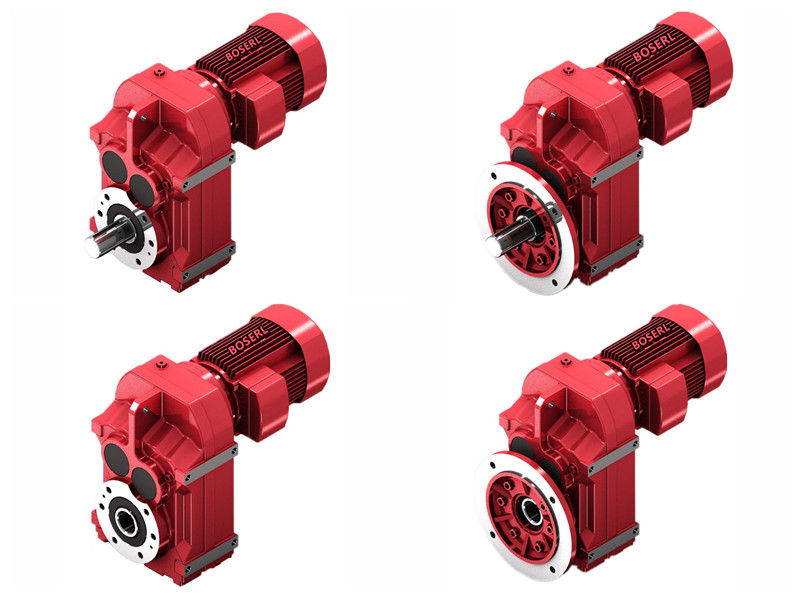

F87減速機實物圖:圖一為F87底腳安裝軸輸出平行軸減速機,圖二FF87立式法蘭軸輸出平行軸斜齒輪減速機,圖三為FA87臥式孔輸出平行軸減速機,圖四為FAF87立式法蘭孔輸出平行軸斜齒輪減速機。
F87減速機型號表示方法:
F87減速機型號結構F87-B22KW-4P-減速比-安裝方式-接線盒位置。
F87減速機性能參數表結構說明:F87、FF87、FA87、FAF87減速機機座號,HF手動釋放裝置帶自鎖功能,HR手動釋放裝置,TF電機熱保護裝置,N代表徑向負荷,KW代表電機功率,1/min代表輸出轉數,Nm代表輸出扭矩。
F87減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供??商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明,將按默認方位R(0°)提供。
F87減速機結構圖:
F87減速機參數:
F87減速機電機可配直流/變頻/剎車/防爆/伺服/交流/三相/單相電機F87配0.55KW,F87配0.75KW,F87配1.1KW,F87配1.5KW,F87配2.2KW,F87配3KW,F87配4KW,F87配5.5KW,F87配7.5KW,F87配11KW,F87配15KW,F87配18.5KW,F87配22KW。
F87減速機減速比1:270,1:255,1:228,1:197,1:179,1:159,1:134,1:123,1:109,1:97,1:88,1:76,1:68,1:56,1:50,1:45,1:39,1:35,1:29,1:33,1:28,1:26,1:23,1:21,1:19,1:17,1:15,1:13,1:11,1:9,1:8,1:7,1:6,1:5,1:4。
F87減速機輸出轉數5.2轉,5.5轉,6.1轉,7.1轉,7.8轉,8.8轉,10轉,11轉,13轉,14轉,16轉,18轉,20轉,25轉,28轉,31轉,36轉,40轉,48轉,49轉,53轉,59轉,66轉,73轉,82轉,90轉,107轉,122轉,146轉,169轉,190轉,211轉,249轉,285轉,340轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為F系列減速機的輸入)
F87減速機輸出扭矩3000N.m,2940N.m,2880N.m,2820N.m,2720N.m,2610N.m,2510N.m,2450N.m,1530N.m,1460N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

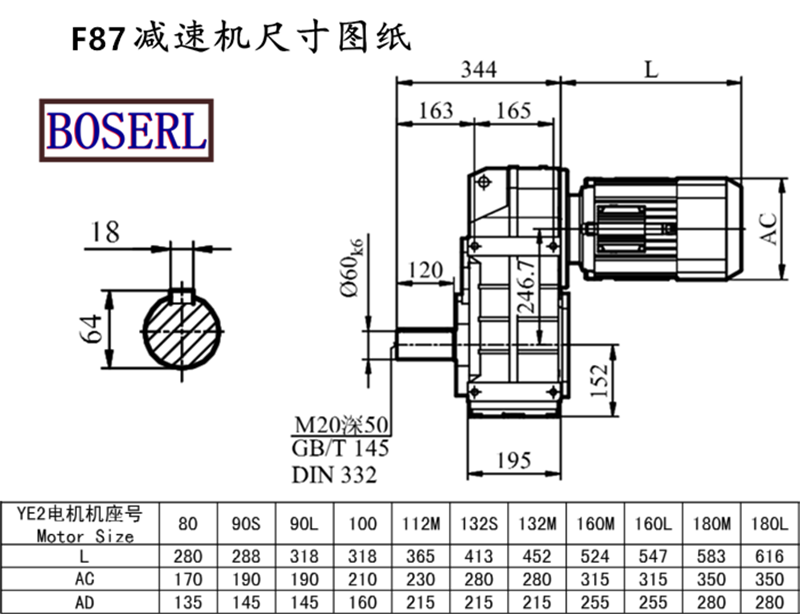

F87減速機尺寸圖紙:高531*寬330*長344(帶輸出軸)F系列減速機
F87減速機型號:F87AQA80,F87AQA100,F87AQA115,F87AQA140,F87AQA160,F87AQA190,F87AQH80,F87AQH100,F87AQH115,F87AQH140,F87AQH160,F87AQH190,JRTF87-Y0.37KW,JRTF87-Y0.55KW,JRTF87-Y0.75KW,JRTF87-Y1.1KW,JRTF87-Y1.5KW,JRTF87-Y100M4,JRTF87-Y112M4,JRTF87-Y11KW,JRTF87-Y132M4,JRTF87-Y15KW,JRTF87-Y160M4,JRTF87-Y18.5KW,JRTF87-Y180M4,JRTF87-Y2.2KW,JRTF87-Y200M4,JRTF87-Y22KW,JRTF87-Y3KW,JRTF87-Y4KW,JRTF87-Y5.5KW,JRTF87-Y7.5KW,JRTF87-Y71M4,JRTF87-Y80M4,JRTF87-Y90M4,JRTF87-YEJ100M4,JRTF87-YEJ112M4,JRTF87-YEJ132M4,JRTF87-YEJ160M4,JRTF87-YEJ180M4,JRTF87-YEJ200M4,JRTF87-YEJ71M4,JRTF87-YEJ80M4,JRTF87-YEJ90M4,JRTF87-YS100M4,JRTF87-YS112M4,JRTF87-YS132M4,JRTF87-YS160M4,JRTF87-YS180M4,JRTF87-YS200M4,JRTF87-YS71M4,JRTF87-YS80M4,JRTF87-YS90M4,JRTF87-YVP100M4,JRTF87-YVP112M4,JRTF87-YVP132M4,JRTF87-YVP160M4,JRTF87-YVP180M4,JRTF87-YVP200M4,JRTF87-YVP71M4,JRTF87-YVP80M4,JRTF87-YVP90M4,JRTF87-YVPEJ100M4,JRTF87-YVPEJ112M4,JRTF87-YVPEJ132M4,JRTF87-YVPEJ160M4,JRTF87-YVPEJ180M4,JRTF87-YVPEJ200M4,JRTF87-YVPEJ71M4,JRTF87-YVPEJ80M4,JRTF87-YVPEJ90M4,EWF87-Y0.37KW,EWF87-Y0.55KW,EWF87-Y0.75KW,EWF87-Y1.1KW,EWF87-Y1.5KW,EWF87-Y100M4,EWF87-Y112M4,EWF87-Y11KW,EWF87-Y132M4,EWF87-Y15KW,EWF87-Y160M4,EWF87-Y18.5KW,EWF87-Y180M4,EWF87-Y2.2KW,EWF87-Y200M4,EWF87-Y22KW,EWF87-Y3KW,EWF87-Y4KW,EWF87-Y5.5KW,EWF87-Y7.5KW,EWF87-Y71M4,EWF87-Y80M4,EWF87-Y90M4,EWF87-YEJ100M4,EWF87-YEJ112M4,EWF87-YEJ132M4,EWF87-YEJ160M4,EWF87-YEJ180M4,EWF87-YEJ200M4,EWF87-YEJ71M4,EWF87-YEJ80M4,EWF87-YEJ90M4,EWF87-YS100M4,EWF87-YS112M4,EWF87-YS132M4,EWF87-YS160M4,EWF87-YS180M4,EWF87-YS200M4,EWF87-YS71M4,EWF87-YS80M4,EWF87-YS90M4,EWF87-YVP100M4,EWF87-YVP112M4,EWF87-YVP132M4,EWF87-YVP160M4,EWF87-YVP180M4,EWF87-YVP200M4,EWF87-YVP71M4,EWF87-YVP80M4,EWF87-YVP90M4,EWF87-YVPEJ100M4,EWF87-YVPEJ112M4,EWF87-YVPEJ132M4,EWF87-YVPEJ160M4,EWF87-YVPEJ180M4,EWF87-YVPEJ200M4,EWF87-YVPEJ71M4,EWF87-YVPEJ80M4,EWF87-YVPEJ90M4,SLF87-Y0.37KW,SLF87-Y0.55KW,SLF87-Y0.75KW,SLF87-Y1.1KW,SLF87-Y1.5KW,SLF87-Y100M4,SLF87-Y112M4,SLF87-Y11KW,SLF87-Y132M4,SLF87-Y15KW,SLF87-Y160M4,SLF87-Y18.5KW,SLF87-Y180M4,SLF87-Y2.2KW,SLF87-Y200M4,SLF87-Y22KW,SLF87-Y3KW,SLF87-Y4KW,SLF87-Y5.5KW,SLF87-Y7.5KW,SLF87-Y71M4,SLF87-Y80M4,SLF87-Y90M4,SLF87-YEJ100M4,SLF87-YEJ112M4,SLF87-YEJ132M4,SLF87-YEJ160M4,SLF87-YEJ180M4,SLF87-YEJ200M4,SLF87-YEJ71M4,SLF87-YEJ80M4,SLF87-YEJ90M4,SLF87-YS100M4,SLF87-YS112M4,SLF87-YS132M4,SLF87-YS160M4,SLF87-YS180M4,SLF87-YS200M4,SLF87-YS71M4,SLF87-YS80M4,SLF87-YS90M4,SLF87-YVP100M4,SLF87-YVP112M4,SLF87-YVP132M4,SLF87-YVP160M4,SLF87-YVP180M4,SLF87-YVP200M4,SLF87-YVP71M4,SLF87-YVP80M4,SLF87-YVP90M4,SLF87-YVPEJ100M4,SLF87-YVPEJ112M4,SLF87-YVPEJ132M4,SLF87-YVPEJ160M4,SLF87-YVPEJ180M4,SLF87-YVPEJ200M4,SLF87-YVPEJ71M4,SLF87-YVPEJ80M4,SLF87-YVPEJ90M4,DSZF87-Y0.37KW,DSZF87-Y0.55KW,DSZF87-Y0.75KW,DSZF87-Y1.1KW,DSZF87-Y1.5KW,DSZF87-Y100M4,DSZF87-Y112M4,DSZF87-Y11KW,DSZF87-Y132M4,DSZF87-Y15KW,DSZF87-Y160M4,DSZF87-Y18.5KW,DSZF87-Y180M4,DSZF87-Y2.2KW,DSZF87-Y200M4,DSZF87-Y22KW,DSZF87-Y3KW,DSZF87-Y4KW,DSZF87-Y5.5KW,DSZF87-Y7.5KW,DSZF87-Y71M4,DSZF87-Y80M4,DSZF87-Y90M4,DSZF87-YEJ100M4,DSZF87-YEJ112M4,DSZF87-YEJ132M4,DSZF87-YEJ160M4,DSZF87-YEJ180M4,DSZF87-YEJ200M4,DSZF87-YEJ71M4,DSZF87-YEJ80M4,DSZF87-YEJ90M4,DSZF87-YS100M4,DSZF87-YS112M4,DSZF87-YS132M4,DSZF87-YS160M4,DSZF87-YS180M4,DSZF87-YS200M4,DSZF87-YS71M4,DSZF87-YS80M4,DSZF87-YS90M4,DSZF87-YVP100M4,DSZF87-YVP112M4,DSZF87-YVP132M4,DSZF87-YVP160M4,DSZF87-YVP180M4,DSZF87-YVP200M4,DSZF87-YVP71M4,DSZF87-YVP80M4,DSZF87-YVP90M4,DSZF87-YVPEJ100M4,DSZF87-YVPEJ112M4,DSZF87-YVPEJ132M4,DSZF87-YVPEJ160M4,DSZF87-YVPEJ180M4,DSZF87-YVPEJ200M4,DSZF87-YVPEJ71M4,DSZF87-YVPEJ80M4,DSZF87-YVPEJ90M4,BF87-Y0.37KW,BF87-Y0.55KW,BF87-Y0.75KW,BF87-Y1.1KW,BF87-Y1.5KW,BF87-Y100M4,BF87-Y112M4,BF87-Y11KW,BF87-Y132M4,BF87-Y15KW,BF87-Y160M4,BF87-Y18.5KW,BF87-Y180M4,BF87-Y2.2KW,BF87-Y200M4,BF87-Y22KW,BF87-Y3KW,BF87-Y4KW,BF87-Y5.5KW,BF87-Y7.5KW,BF87-Y71M4,BF87-Y80M4,BF87-Y90M4,BF87-YEJ100M4,BF87-YEJ112M4,BF87-YEJ132M4,BF87-YEJ160M4,BF87-YEJ180M4,BF87-YEJ200M4,BF87-YEJ71M4,BF87-YEJ80M4,BF87-YEJ90M4,BF87-YS100M4,BF87-YS112M4,BF87-YS132M4,BF87-YS160M4,BF87-YS180M4,BF87-YS200M4,BF87-YS71M4,BF87-YS80M4,BF87-YS90M4,BF87-YVP100M4,BF87-YVP112M4,BF87-YVP132M4,BF87-YVP160M4,BF87-YVP180M4,BF87-YVP200M4,BF87-YVP71M4,BF87-YVP80M4,BF87-YVP90M4,BF87-YVPEJ100M4,BF87-YVPEJ112M4,BF87-YVPEJ132M4,BF87-YVPEJ160M4,BF87-YVPEJ180M4,BF87-YVPEJ200M4,BF87-YVPEJ71M4,BF87-YVPEJ80M4,BF87-YVPEJ90M4,GF87-Y0.37KW,GF87-Y0.55KW,GF87-Y0.75KW,GF87-Y1.1KW,GF87-Y1.5KW,GF87-Y100M4,GF87-Y112M4,GF87-Y11KW,GF87-Y132M4,GF87-Y15KW,GF87-Y160M4,GF87-Y18.5KW,GF87-Y180M4,GF87-Y2.2KW,GF87-Y200M4,GF87-Y22KW,GF87-Y3KW,GF87-Y4KW,GF87-Y5.5KW,GF87-Y7.5KW,GF87-Y71M4,GF87-Y80M4,GF87-Y90M4,GF87-YEJ100M4,GF87-YEJ112M4,GF87-YEJ132M4,GF87-YEJ160M4,GF87-YEJ180M4,GF87-YEJ200M4,GF87-YEJ71M4,GF87-YEJ80M4,GF87-YEJ90M4,GF87-YS100M4,GF87-YS112M4,GF87-YS132M4,GF87-YS160M4,GF87-YS180M4,GF87-YS200M4,GF87-YS71M4,GF87-YS80M4,GF87-YS90M4,GF87-YVP100M4,GF87-YVP112M4,GF87-YVP132M4,GF87-YVP160M4,GF87-YVP180M4,GF87-YVP200M4,GF87-YVP71M4,GF87-YVP80M4,GF87-YVP90M4,GF87-YVPEJ100M4,GF87-YVPEJ112M4,GF87-YVPEJ132M4,GF87-YVPEJ160M4,GF87-YVPEJ180M4,GF87-YVPEJ200M4,GF87-YVPEJ71M4,GF87-YVPEJ80M4,GF87-YVPEJ90M4,FC87-Y0.37KW,FC87-Y0.55KW,FC87-Y0.75KW,FC87-Y1.1KW,FC87-Y1.5KW,FC87-Y100M4,FC87-Y112M4,FC87-Y11KW,FC87-Y132M4,FC87-Y15KW,FC87-Y160M4,FC87-Y18.5KW,FC87-Y180M4,FC87-Y2.2KW,FC87-Y200M4,FC87-Y22KW,FC87-Y3KW,FC87-Y4KW,FC87-Y5.5KW,FC87-Y7.5KW,FC87-Y71M4,FC87-Y80M4,FC87-Y90M4,FC87-YEJ100M4,FC87-YEJ112M4,FC87-YEJ132M4,FC87-YEJ160M4,FC87-YEJ180M4,FC87-YEJ200M4,FC87-YEJ71M4,FC87-YEJ80M4,FC87-YEJ90M4,FC87-YS100M4,FC87-YS112M4,FC87-YS132M4,FC87-YS160M4,FC87-YS180M4,FC87-YS200M4,FC87-YS71M4,FC87-YS80M4,FC87-YS90M4,FC87-YVP100M4,FC87-YVP112M4,FC87-YVP132M4,FC87-YVP160M4,FC87-YVP180M4,FC87-YVP200M4,FC87-YVP71M4,FC87-YVP80M4,FC87-YVP90M4,FC87-YVPEJ100M4,FC87-YVPEJ112M4,FC87-YVPEJ132M4,FC87-YVPEJ160M4,FC87-YVPEJ180M4,FC87-YVPEJ200M4,FC87-YVPEJ71M4,FC87-YVPEJ80M4,FC87-YVPEJ90M4,MTP87-Y0.37KW,MTP87-Y0.55KW,MTP87-Y0.75KW,MTP87-Y1.1KW,MTP87-Y1.5KW,MTP87-Y100M4,MTP87-Y112M4,MTP87-Y11KW,MTP87-Y132M4,MTP87-Y15KW,MTP87-Y160M4,MTP87-Y18.5KW,MTP87-Y180M4,MTP87-Y2.2KW,MTP87-Y200M4,MTP87-Y22KW,MTP87-Y3KW,MTP87-Y4KW,MTP87-Y5.5KW,MTP87-Y7.5KW,MTP87-Y71M4,MTP87-Y80M4,MTP87-Y90M4,MTP87-YEJ100M4,MTP87-YEJ112M4,MTP87-YEJ132M4,MTP87-YEJ160M4,MTP87-YEJ180M4,MTP87-YEJ200M4,MTP87-YEJ71M4,MTP87-YEJ80M4,MTP87-YEJ90M4,MTP87-YS100M4,MTP87-YS112M4,MTP87-YS132M4,MTP87-YS160M4,MTP87-YS180M4,MTP87-YS200M4,MTP87-YS71M4,MTP87-YS80M4,MTP87-YS90M4,MTP87-YVP100M4,MTP87-YVP112M4,MTP87-YVP132M4,MTP87-YVP160M4,MTP87-YVP180M4,MTP87-YVP200M4,MTP87-YVP71M4,MTP87-YVP80M4,MTP87-YVP90M4,MTP87-YVPEJ100M4,MTP87-YVPEJ112M4,MTP87-YVPEJ132M4,MTP87-YVPEJ160M4,MTP87-YVPEJ180M4,MTP87-YVPEJ200M4,MTP87-YVPEJ71M4,MTP87-YVPEJ80M4,MTP87-YVPEJ90M4,WXF87-WSS0.37KW,WXF87-WSS0.55KW,WXF87-WSS0.75KW,WXF87-WSS1.1KW,WXF87-WSS1.5KW,WXF87-WSS100M4,WXF87-WSS112M4,WXF87-WSS11KW,WXF87-WSS132M4,WXF87-WSS15KW,WXF87-WSS160M4,WXF87-WSS18.5KW,WXF87-WSS180M4,WXF87-WSS2.2KW,WXF87-WSS200M4,WXF87-WSS22KW,WXF87-WSS3KW,WXF87-WSS4KW,WXF87-WSS5.5KW,WXF87-WSS7.5KW,WXF87-WSS71M4,WXF87-WSS80M4,WXF87-WSS90M4,WXF87-WSSB100M4,WXF87-WSSB112M4,WXF87-WSSB132M4,WXF87-WSSB160M4,WXF87-WSSB180M4,WXF87-WSSB200M4,WXF87-WSSB71M4,WXF87-WSSB80M4,WXF87-WSSB90M4,WXF87-WSSVP100M4,WXF87-WSSVP112M4,WXF87-WSSVP132M4,WXF87-WSSVP160M4,WXF87-WSSVP180M4,WXF87-WSSVP200M4,WXF87-WSSVP71M4,WXF87-WSSVP80M4,WXF87-WSSVP90M4,WXF87-WSSVPB100M4,WXF87-WSSVPB112M4,WXF87-WSSVPB132M4,WXF87-WSSVPB160M4,WXF87-WSSVPB180M4,WXF87-WSSVPB200M4,WXF87-WSSVPB71M4,WXF87-WSSVPB80M4,WXF87-WSSVPB90M4。
F87減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-fxiliejiansuji-cn.html
