F37減速機詳細信息

prevnext

F37減速機

訂購熱線:13360667204
  1. 詳細信息

F37減速機重量:F37減速機重量13公斤,F37減速機配電機重量分別如下

F37減速機配0.12KW電機重量18.5公斤,F37減速機配0.18KW電機重量19公斤,F37減速機配0.25KW電機重量23公斤,F37減速機配0.37KW電機重量23.5公斤,F37減速機配0.55KW電機重量28公斤,F37減速機配0.75KW電機重量29公斤,F37減速機配1.1KW電機重量33公斤,F37減速機配1.5KW電機重量36公斤,F37減速機配2.2KW電機重量45公斤,F37減速機配3KW電機重量48公斤。

F37減速機加油量:可加礦物油

F37減速機M1安裝加0.95升,F37減速機M2安裝加1.25升,F37減速機M3安裝加0.7升,F37減速機M4安裝加1.25升,F37減速機M5安裝加1升,F37減速機M6安裝加1.1升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

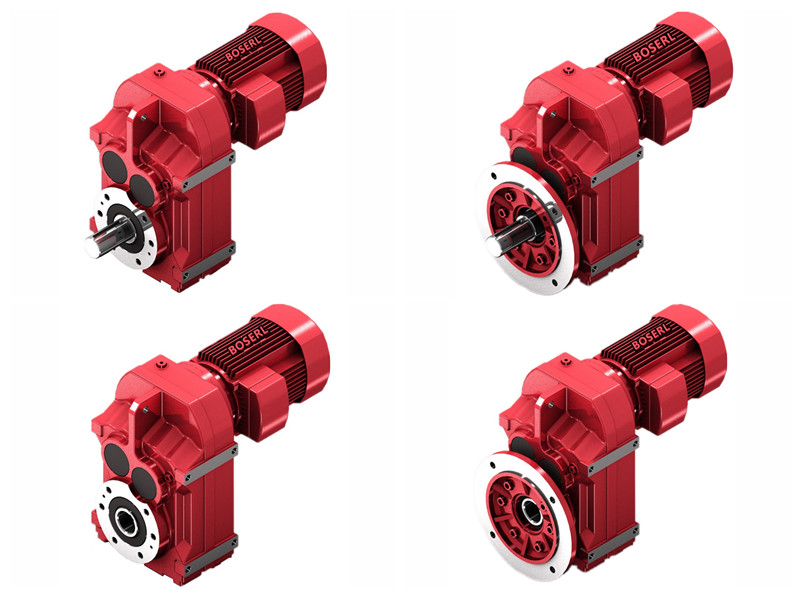

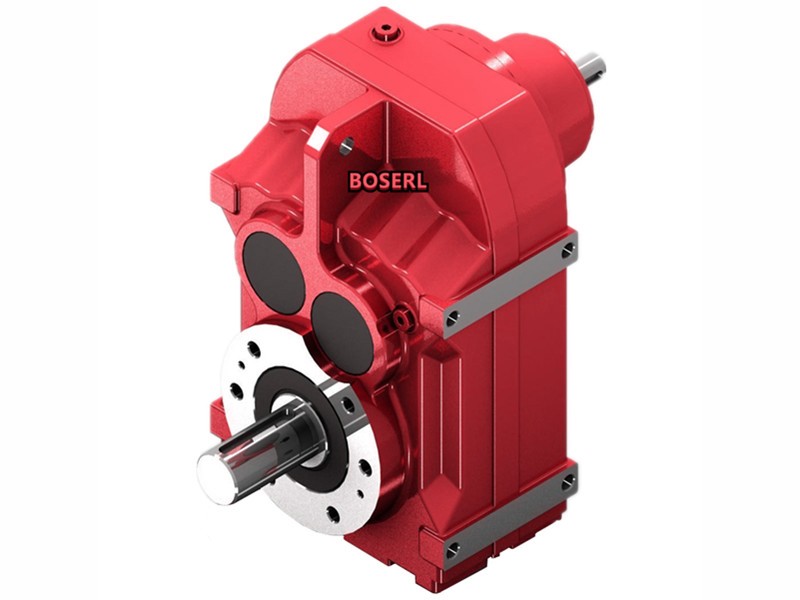

F37減速機實物圖:圖一為F37底腳安裝軸輸出平行軸減速機,圖二FF37立式法蘭軸輸出平行軸斜齒輪減速機,圖三為FA37臥式孔輸出平行軸減速機,圖四為FAF37立式法蘭孔輸出平行軸斜齒輪減速機。


F37減速機型號表示方法:

F37減速機型號結構F37-B2.2KW-4P-減速比-安裝方式-接線盒位置。

F37減速機性能參數表結構說明:F37、FF37、FA37、FAF37減速機機座號,HF手動釋放裝置帶自鎖功能,HR手動釋放裝置,TF電機熱保護裝置,N代表徑向負荷,KW代表電機功率,1/min代表輸出轉數,Nm代表輸出扭矩。

F37減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供??商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明,將按默認方位R(0°)提供。齒輪減速機

F37減速機結構圖:


F37減速機參數:

F37減速機電機可配直流/變頻/剎車/防爆/伺服/交流/三相/單相電機F37配0.12KW,F37配0.18KW,F37配0.25KW,F37配0.37KW,F37配0.55KW,F37配0.75KW,F37配1.1KW,F37配1.5KW,F37配2.2KW,F37配3KW。

F37減速機減速比1:128,1:117,1:100,1:86,1:80,1:70,1:66,1:58,1:54,1:51,1:47,1:43,1:38,1:35,1:31,1:28,1:23,1:20,1:19,1:17,1:15,1:14,1:12,1:11,1:10,1:9,1:8,1:7,1:6,1:5,1:4,1:3。

F37減速機輸出轉數:11轉,12轉,14轉,16轉,17轉,20轉,21轉,24轉,26轉,27轉,30轉,32轉,37轉,39轉,44轉,50轉,59轉,68轉,73轉,82轉,89轉,98轉,109轉,126轉,134轉,156轉,175轉,188轉,208轉,231轉,269轉,286轉,332轉,371轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為F系列減速機的輸入)

F37減速機輸出扭矩200N.m,190N.m,185N.m,175N.m,170N.m,145N.m,140N.m,135N.m,125N.m,120N.m,110N.m,105N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

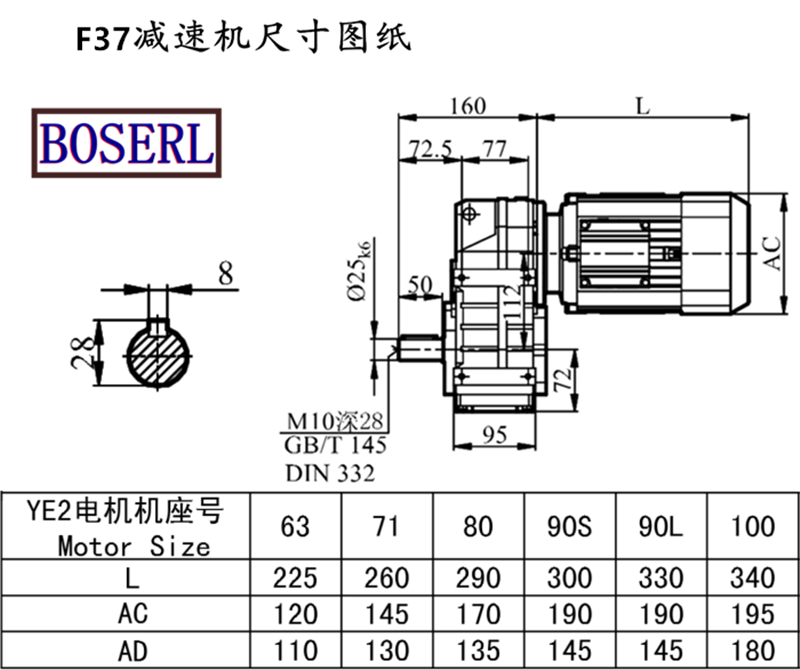

F37減速機尺寸圖紙:高248*寬165*長160(帶輸出軸)F系列減速機


F37減速機型號:F37AQA80,F37AQA100,F37AQA115,F37AQA140,F37AQA160,F37AQA190,F37AQH80,F37AQH100,F37AQH115,F37AQH140,F37AQH160,F37AQH190,JRTF37-Y0.12KW,JRTF37-Y0.18KW,JRTF37-Y0.25KW,JRTF37-Y0.37KW,JRTF37-Y0.55KW,JRTF37-Y0.75KW,JRTF37-Y1.1KW,JRTF37-Y1.5KW,JRTF37-Y100M4,JRTF37-Y2.2KW,JRTF37-Y3KW,JRTF37-Y63M4,JRTF37-Y71M4,JRTF37-Y80M4,JRTF37-Y90M4,JRTF37-YEJ100M4,JRTF37-YEJ63M4,JRTF37-YEJ71M4,JRTF37-YEJ80M4,JRTF37-YEJ90M4,JRTF37-YS100M4,JRTF37-YS63M4,JRTF37-YS71M4,JRTF37-YS80M4,JRTF37-YS90M4,JRTF37-YVP100M4,JRTF37-YVP63M4,JRTF37-YVP71M4,JRTF37-YVP80M4,JRTF37-YVP90M4,JRTF37-YVPEJ100M4,JRTF37-YVPEJ63M4,JRTF37-YVPEJ71M4,JRTF37-YVPEJ80M4,JRTF37-YVPEJ90M4,EWF37-Y0.12KW,EWF37-Y0.18KW,EWF37-Y0.25KW,EWF37-Y0.37KW,EWF37-Y0.55KW,EWF37-Y0.75KW,EWF37-Y1.1KW,EWF37-Y1.5KW,EWF37-Y100M4,EWF37-Y2.2KW,EWF37-Y3KW,EWF37-Y63M4,EWF37-Y71M4,EWF37-Y80M4,EWF37-Y90M4,EWF37-YEJ100M4,EWF37-YEJ63M4,EWF37-YEJ71M4,EWF37-YEJ80M4,EWF37-YEJ90M4,EWF37-YS100M4,EWF37-YS63M4,EWF37-YS71M4,EWF37-YS80M4,EWF37-YS90M4,EWF37-YVP100M4,EWF37-YVP63M4,EWF37-YVP71M4,EWF37-YVP80M4,EWF37-YVP90M4,EWF37-YVPEJ100M4,EWF37-YVPEJ63M4,EWF37-YVPEJ71M4,EWF37-YVPEJ80M4,EWF37-YVPEJ90M4,SLF37-Y0.12KW,SLF37-Y0.18KW,SLF37-Y0.25KW,SLF37-Y0.37KW,SLF37-Y0.55KW,SLF37-Y0.75KW,SLF37-Y1.1KW,SLF37-Y1.5KW,SLF37-Y100M4,SLF37-Y2.2KW,SLF37-Y3KW,SLF37-Y63M4,SLF37-Y71M4,SLF37-Y80M4,SLF37-Y90M4,SLF37-YEJ100M4,SLF37-YEJ63M4,SLF37-YEJ71M4,SLF37-YEJ80M4,SLF37-YEJ90M4,SLF37-YS100M4,SLF37-YS63M4,SLF37-YS71M4,SLF37-YS80M4,SLF37-YS90M4,SLF37-YVP100M4,SLF37-YVP63M4,SLF37-YVP71M4,SLF37-YVP80M4,SLF37-YVP90M4,SLF37-YVPEJ100M4,SLF37-YVPEJ63M4,SLF37-YVPEJ71M4,SLF37-YVPEJ80M4,SLF37-YVPEJ90M4,DSZF37-Y0.12KW,DSZF37-Y0.18KW,DSZF37-Y0.25KW,DSZF37-Y0.37KW,DSZF37-Y0.55KW,DSZF37-Y0.75KW,DSZF37-Y1.1KW,DSZF37-Y1.5KW,DSZF37-Y100M4,DSZF37-Y2.2KW,DSZF37-Y3KW,DSZF37-Y63M4,DSZF37-Y71M4,DSZF37-Y80M4,DSZF37-Y90M4,DSZF37-YEJ100M4,DSZF37-YEJ63M4,DSZF37-YEJ71M4,DSZF37-YEJ80M4,DSZF37-YEJ90M4,DSZF37-YS100M4,DSZF37-YS63M4,DSZF37-YS71M4,DSZF37-YS80M4,DSZF37-YS90M4,DSZF37-YVP100M4,DSZF37-YVP63M4,DSZF37-YVP71M4,DSZF37-YVP80M4,DSZF37-YVP90M4,DSZF37-YVPEJ100M4,DSZF37-YVPEJ63M4,DSZF37-YVPEJ71M4,DSZF37-YVPEJ80M4,DSZF37-YVPEJ90M4,BF37-Y0.12KW,BF37-Y0.18KW,BF37-Y0.25KW,BF37-Y0.37KW,BF37-Y0.55KW,BF37-Y0.75KW,BF37-Y1.1KW,BF37-Y1.5KW,BF37-Y100M4,BF37-Y2.2KW,BF37-Y3KW,BF37-Y63M4,BF37-Y71M4,BF37-Y80M4,BF37-Y90M4,BF37-YEJ100M4,BF37-YEJ63M4,BF37-YEJ71M4,BF37-YEJ80M4,BF37-YEJ90M4,BF37-YS100M4,BF37-YS63M4,BF37-YS71M4,BF37-YS80M4,BF37-YS90M4,BF37-YVP100M4,BF37-YVP63M4,BF37-YVP71M4,BF37-YVP80M4,BF37-YVP90M4,BF37-YVPEJ100M4,BF37-YVPEJ63M4,BF37-YVPEJ71M4,BF37-YVPEJ80M4,BF37-YVPEJ90M4,GF37-Y0.12KW,GF37-Y0.18KW,GF37-Y0.25KW,GF37-Y0.37KW,GF37-Y0.55KW,GF37-Y0.75KW,GF37-Y1.1KW,GF37-Y1.5KW,GF37-Y100M4,GF37-Y2.2KW,GF37-Y3KW,GF37-Y63M4,GF37-Y71M4,GF37-Y80M4,GF37-Y90M4,GF37-YEJ100M4,GF37-YEJ63M4,GF37-YEJ71M4,GF37-YEJ80M4,GF37-YEJ90M4,GF37-YS100M4,GF37-YS63M4,GF37-YS71M4,GF37-YS80M4,GF37-YS90M4,GF37-YVP100M4,GF37-YVP63M4,GF37-YVP71M4,GF37-YVP80M4,GF37-YVP90M4,GF37-YVPEJ100M4,GF37-YVPEJ63M4,GF37-YVPEJ71M4,GF37-YVPEJ80M4,GF37-YVPEJ90M4,FC37-Y0.12KW,FC37-Y0.18KW,FC37-Y0.25KW,FC37-Y0.37KW,FC37-Y0.55KW,FC37-Y0.75KW,FC37-Y1.1KW,FC37-Y1.5KW,FC37-Y100M4,FC37-Y2.2KW,FC37-Y3KW,FC37-Y63M4,FC37-Y71M4,FC37-Y80M4,FC37-Y90M4,FC37-YEJ100M4,FC37-YEJ63M4,FC37-YEJ71M4,FC37-YEJ80M4,FC37-YEJ90M4,FC37-YS100M4,FC37-YS63M4,FC37-YS71M4,FC37-YS80M4,FC37-YS90M4,FC37-YVP100M4,FC37-YVP63M4,FC37-YVP71M4,FC37-YVP80M4,FC37-YVP90M4,FC37-YVPEJ100M4,FC37-YVPEJ63M4,FC37-YVPEJ71M4,FC37-YVPEJ80M4,FC37-YVPEJ90M4,MTP37-Y0.12KW,MTP37-Y0.18KW,MTP37-Y0.25KW,MTP37-Y0.37KW,MTP37-Y0.55KW,MTP37-Y0.75KW,MTP37-Y1.1KW,MTP37-Y1.5KW,MTP37-Y100M4,MTP37-Y2.2KW,MTP37-Y3KW,MTP37-Y63M4,MTP37-Y71M4,MTP37-Y80M4,MTP37-Y90M4,MTP37-YEJ100M4,MTP37-YEJ63M4,MTP37-YEJ71M4,MTP37-YEJ80M4,MTP37-YEJ90M4,MTP37-YS100M4,MTP37-YS63M4,MTP37-YS71M4,MTP37-YS80M4,MTP37-YS90M4,MTP37-YVP100M4,MTP37-YVP63M4,MTP37-YVP71M4,MTP37-YVP80M4,MTP37-YVP90M4,MTP37-YVPEJ100M4,MTP37-YVPEJ63M4,MTP37-YVPEJ71M4,MTP37-YVPEJ80M4,MTP37-YVPEJ90M4,WXF37-WSS0.12KW,WXF37-WSS0.18KW,WXF37-WSS0.25KW,WXF37-WSS0.37KW,WXF37-WSS0.55KW,WXF37-WSS0.75KW,WXF37-WSS1.1KW,WXF37-WSS1.5KW,WXF37-WSS100M4,WXF37-WSS2.2KW,WXF37-WSS3KW,WXF37-WSS63M4,WXF37-WSS71M4,WXF37-WSS80M4,WXF37-WSS90M4,WXF37-WSSB100M4,WXF37-WSSB63M4,WXF37-WSSB71M4,WXF37-WSSB80M4,WXF37-WSSB90M4,WXF37-WSSVP100M4,WXF37-WSSVP63M4,WXF37-WSSVP71M4,WXF37-WSSVP80M4,WXF37-WSSVP90M4,WXF37-WSSVPB100M4,WXF37-WSSVPB63M4,WXF37-WSSVPB71M4,WXF37-WSSVPB80M4,WXF37-WSSVPB90M4。

F37減速機生產廠家展示:看廠請聯系微信13827261050,獲取位置,需提前一天預約http://www.oaraishinsengumi.com/product/list-fxiliejiansuji-cn.html

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

齒輪減速機加電機

推薦類似型號:F27減速機

關鍵詞:F系列減速機加電機一體化_F系列減速器_減速機加電機_加減速器的電機_加減速機的電機_電機加減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器加電機

F系列減速機型號:F27減速機,F37減速機,F47減速機,F67減速機,F77減速機,F87減速機,F97減速機,F107減速機,F127減速機,F157減速機

F系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求


標簽:   F37減速機 F37減速電機 F37減速器 F37減速箱 F37減速機生產廠家
