F27減速機詳細信息
F27減速機
F27減速機重量:F27減速機重量10公斤,F27減速機配電機重量分別如下
F27減速機配0.12KW電機重量15.5公斤,F27減速機配0.18KW電機重量16公斤,F27減速機配0.25KW電機重量20公斤,F27減速機配0.37KW電機重量20.5公斤,F27減速機配0.55KW電機重量25公斤,F27減速機配0.75KW電機重量26公斤,F27減速機配1.1KW電機重量30公斤,F27減速機配1.5KW電機重量33公斤,F27減速機配2.2KW電機重量42公斤。齒輪減速機
F27減速機加油量:可加礦物油
F27減速機M1安裝加0.6升,F27減速機M2安裝加0.8升,F27減速機M3安裝加0.65升,F27減速機M4安裝加0.7升,F27減速機M5安裝加0.6升,F27減速機M6安裝加0.6升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

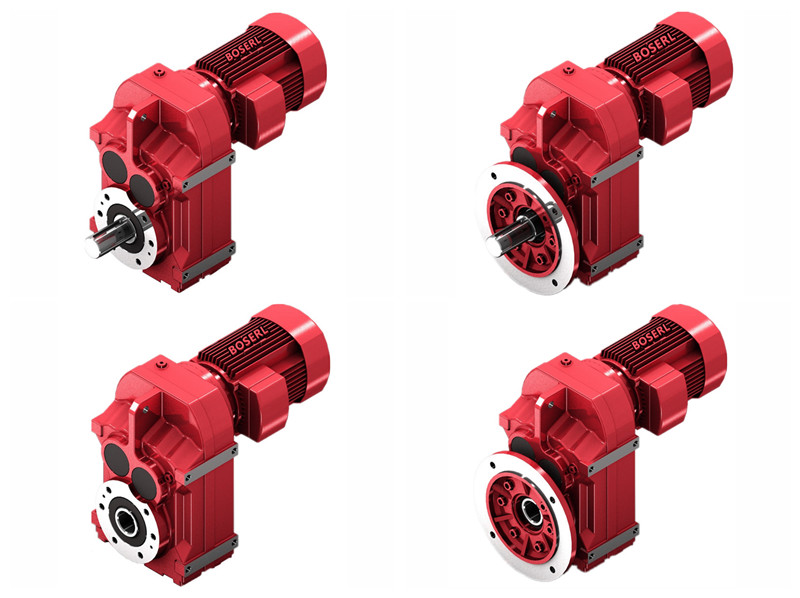

F27減速機實物圖:圖一為F27底腳安裝軸輸出平行軸減速機,圖二FF27立式法蘭軸輸出平行軸斜齒輪減速機,圖三為FA27臥式孔輸出平行軸減速機,圖四為FAF27立式法蘭孔輸出平行軸斜齒輪減速機。
F27減速機型號表示方法:
F27減速機型號結構F27-B1.5KW-4P-減速比-安裝方式-接線盒位置。
F27減速機性能參數表結構說明:F27、FF27、FA27、FAF27減速機機座號,HF手動釋放裝置帶自鎖功能,HR手動釋放裝置,TF電機熱保護裝置,N代表徑向負荷,KW代表電機功率,1/min代表輸出轉數,Nm代表輸出扭矩。
F27減速機電機接線盒方位說明:本頁附件選型資料視圖為M1安裝,方向為:從電機尾部的風罩向前看??商峁㏑(0°)、B(90°)、L(180° )、T(270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明,將按默認方位提供??商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明,將按默認方位R(0°)提供。F系列減速機
F27減速機結構圖:
F27減速機參數:
F27減速機電機可配直流/變頻/剎車/防爆/伺服/交流/三相/單相電機F27配0.12KW,F27配0.18KW,F27配0.25KW,F27配0.37KW,F27配0.55KW,F27配0.75KW,F27配1.1KW,F27配1.5KW,F27配2.2KW。
F27減速機減速比1:140,1:129,1:109,1:94,1:88,1:77,1:72,1:63,1:56,1:50,1:46,1:40,1:38,1:33,1:29,1:27,1:23,1:20,1:18,1:16,1:13,1:12,1:10,1:9,1:8,1:6,1:5,1:4。
F27減速機輸出轉數:9轉,11轉,13轉,15轉,16轉,18轉,19轉,22轉,25轉,28轉,30轉,34轉,37轉,41轉,47轉,52轉,60轉,69轉,74轉,86轉,101轉,113轉,133轉,142轉,149轉,172轉,203轉,227轉,266轉,284轉,337轉。(以上轉數均為四級電機算出的,可用2P/6P/8P計算,也可以用變頻電機調速,當需要特別低速輸出時,可選擇R系列減速機作為F系列減速機的輸入)
F27減速機輸出扭矩130N.m,123N.m,114N.m,109N.m,100N.m,96N.m,87N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者選擇跟R系列減速機組合使用)

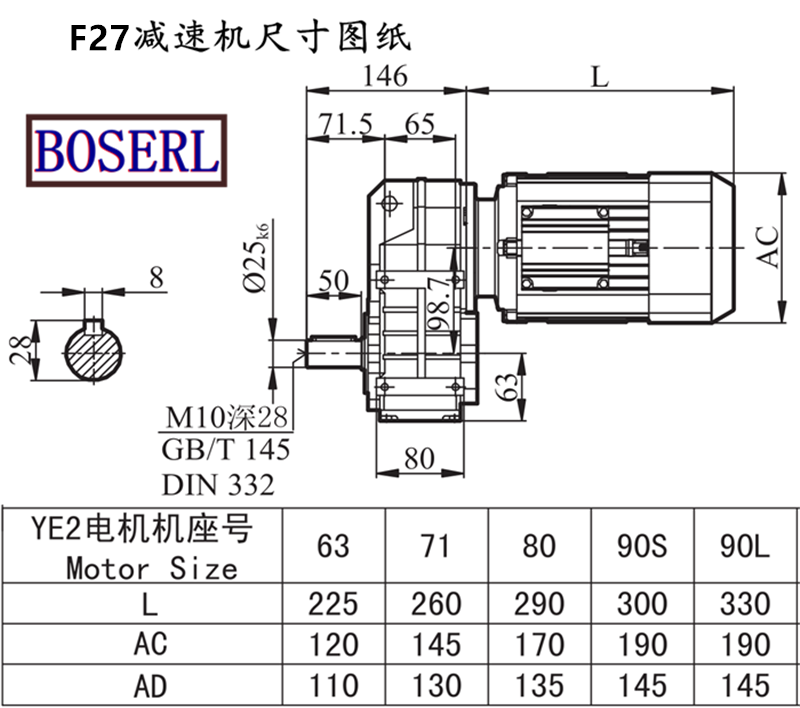

F27減速機尺寸圖紙:高226*寬150*長146(帶輸出軸)
F27減速機型號:F27AQA80,F27AQA100,F27AQA115,F27AQA140,F27AQA160,F27AQA190,F27AQH80,F27AQH100,F27AQH115,F27AQH140,F27AQH160,F27AQH190,JRTF27-Y0.12KW,JRTF27-Y0.18KW,JRTF27-Y0.25KW,JRTF27-Y0.37KW,JRTF27-Y0.55KW,JRTF27-Y0.75KW,JRTF27-Y1.1KW,JRTF27-Y1.5KW,JRTF27-Y100M4,JRTF27-Y2.2KW,JRTF27-Y63M4,JRTF27-Y71M4,JRTF27-Y80M4,JRTF27-Y90M4,JRTF27-YEJ100M4,JRTF27-YEJ63M4,JRTF27-YEJ71M4,JRTF27-YEJ80M4,JRTF27-YEJ90M4,JRTF27-YS100M4,JRTF27-YS63M4,JRTF27-YS71M4,JRTF27-YS80M4,JRTF27-YS90M4,JRTF27-YVP100M4,JRTF27-YVP63M4,JRTF27-YVP71M4,JRTF27-YVP80M4,JRTF27-YVP90M4,JRTF27-YVPEJ100M4,JRTF27-YVPEJ63M4,JRTF27-YVPEJ71M4,JRTF27-YVPEJ80M4,JRTF27-YVPEJ90M4,EWF27-Y0.12KW,EWF27-Y0.18KW,EWF27-Y0.25KW,EWF27-Y0.37KW,EWF27-Y0.55KW,EWF27-Y0.75KW,EWF27-Y1.1KW,EWF27-Y1.5KW,EWF27-Y100M4,EWF27-Y2.2KW,EWF27-Y63M4,EWF27-Y71M4,EWF27-Y80M4,EWF27-Y90M4,EWF27-YEJ100M4,EWF27-YEJ63M4,EWF27-YEJ71M4,EWF27-YEJ80M4,EWF27-YEJ90M4,EWF27-YS100M4,EWF27-YS63M4,EWF27-YS71M4,EWF27-YS80M4,EWF27-YS90M4,EWF27-YVP100M4,EWF27-YVP63M4,EWF27-YVP71M4,EWF27-YVP80M4,EWF27-YVP90M4,EWF27-YVPEJ100M4,EWF27-YVPEJ63M4,EWF27-YVPEJ71M4,EWF27-YVPEJ80M4,EWF27-YVPEJ90M4,SLF27-Y0.12KW,SLF27-Y0.18KW,SLF27-Y0.25KW,SLF27-Y0.37KW,SLF27-Y0.55KW,SLF27-Y0.75KW,SLF27-Y1.1KW,SLF27-Y1.5KW,SLF27-Y100M4,SLF27-Y2.2KW,SLF27-Y63M4,SLF27-Y71M4,SLF27-Y80M4,SLF27-Y90M4,SLF27-YEJ100M4,SLF27-YEJ63M4,SLF27-YEJ71M4,SLF27-YEJ80M4,SLF27-YEJ90M4,SLF27-YS100M4,SLF27-YS63M4,SLF27-YS71M4,SLF27-YS80M4,SLF27-YS90M4,SLF27-YVP100M4,SLF27-YVP63M4,SLF27-YVP71M4,SLF27-YVP80M4,SLF27-YVP90M4,SLF27-YVPEJ100M4,SLF27-YVPEJ63M4,SLF27-YVPEJ71M4,SLF27-YVPEJ80M4,SLF27-YVPEJ90M4,DSZF27-Y0.12KW,DSZF27-Y0.18KW,DSZF27-Y0.25KW,DSZF27-Y0.37KW,DSZF27-Y0.55KW,DSZF27-Y0.75KW,DSZF27-Y1.1KW,DSZF27-Y1.5KW,DSZF27-Y100M4,DSZF27-Y2.2KW,DSZF27-Y63M4,DSZF27-Y71M4,DSZF27-Y80M4,DSZF27-Y90M4,DSZF27-YEJ100M4,DSZF27-YEJ63M4,DSZF27-YEJ71M4,DSZF27-YEJ80M4,DSZF27-YEJ90M4,DSZF27-YS100M4,DSZF27-YS63M4,DSZF27-YS71M4,DSZF27-YS80M4,DSZF27-YS90M4,DSZF27-YVP100M4,DSZF27-YVP63M4,DSZF27-YVP71M4,DSZF27-YVP80M4,DSZF27-YVP90M4,DSZF27-YVPEJ100M4,DSZF27-YVPEJ63M4,DSZF27-YVPEJ71M4,DSZF27-YVPEJ80M4,DSZF27-YVPEJ90M4,BF27-Y0.12KW,BF27-Y0.18KW,BF27-Y0.25KW,BF27-Y0.37KW,BF27-Y0.55KW,BF27-Y0.75KW,BF27-Y1.1KW,BF27-Y1.5KW,BF27-Y100M4,BF27-Y2.2KW,BF27-Y63M4,BF27-Y71M4,BF27-Y80M4,BF27-Y90M4,BF27-YEJ100M4,BF27-YEJ63M4,BF27-YEJ71M4,BF27-YEJ80M4,BF27-YEJ90M4,BF27-YS100M4,BF27-YS63M4,BF27-YS71M4,BF27-YS80M4,BF27-YS90M4,BF27-YVP100M4,BF27-YVP63M4,BF27-YVP71M4,BF27-YVP80M4,BF27-YVP90M4,BF27-YVPEJ100M4,BF27-YVPEJ63M4,BF27-YVPEJ71M4,BF27-YVPEJ80M4,BF27-YVPEJ90M4,GF27-Y0.12KW,GF27-Y0.18KW,GF27-Y0.25KW,GF27-Y0.37KW,GF27-Y0.55KW,GF27-Y0.75KW,GF27-Y1.1KW,GF27-Y1.5KW,GF27-Y100M4,GF27-Y2.2KW,GF27-Y63M4,GF27-Y71M4,GF27-Y80M4,GF27-Y90M4,GF27-YEJ100M4,GF27-YEJ63M4,GF27-YEJ71M4,GF27-YEJ80M4,GF27-YEJ90M4,GF27-YS100M4,GF27-YS63M4,GF27-YS71M4,GF27-YS80M4,GF27-YS90M4,GF27-YVP100M4,GF27-YVP63M4,GF27-YVP71M4,GF27-YVP80M4,GF27-YVP90M4,GF27-YVPEJ100M4,GF27-YVPEJ63M4,GF27-YVPEJ71M4,GF27-YVPEJ80M4,GF27-YVPEJ90M4,FC27-Y0.12KW,FC27-Y0.18KW,FC27-Y0.25KW,FC27-Y0.37KW,FC27-Y0.55KW,FC27-Y0.75KW,FC27-Y1.1KW,FC27-Y1.5KW,FC27-Y100M4,FC27-Y2.2KW,FC27-Y63M4,FC27-Y71M4,FC27-Y80M4,FC27-Y90M4,FC27-YEJ100M4,FC27-YEJ63M4,FC27-YEJ71M4,FC27-YEJ80M4,FC27-YEJ90M4,FC27-YS100M4,FC27-YS63M4,FC27-YS71M4,FC27-YS80M4,FC27-YS90M4,FC27-YVP100M4,FC27-YVP63M4,FC27-YVP71M4,FC27-YVP80M4,FC27-YVP90M4,FC27-YVPEJ100M4,FC27-YVPEJ63M4,FC27-YVPEJ71M4,FC27-YVPEJ80M4,FC27-YVPEJ90M4,MTP27-Y0.12KW,MTP27-Y0.18KW,MTP27-Y0.25KW,MTP27-Y0.37KW,MTP27-Y0.55KW,MTP27-Y0.75KW,MTP27-Y1.1KW,MTP27-Y1.5KW,MTP27-Y100M4,MTP27-Y2.2KW,MTP27-Y63M4,MTP27-Y71M4,MTP27-Y80M4,MTP27-Y90M4,MTP27-YEJ100M4,MTP27-YEJ63M4,MTP27-YEJ71M4,MTP27-YEJ80M4,MTP27-YEJ90M4,MTP27-YS100M4,MTP27-YS63M4,MTP27-YS71M4,MTP27-YS80M4,MTP27-YS90M4,MTP27-YVP100M4,MTP27-YVP63M4,MTP27-YVP71M4,MTP27-YVP80M4,MTP27-YVP90M4,MTP27-YVPEJ100M4,MTP27-YVPEJ63M4,MTP27-YVPEJ71M4,MTP27-YVPEJ80M4,MTP27-YVPEJ90M4,WXF27-WSS0.12KW,WXF27-WSS0.18KW,WXF27-WSS0.25KW,WXF27-WSS0.37KW,WXF27-WSS0.55KW,WXF27-WSS0.75KW,WXF27-WSS1.1KW,WXF27-WSS1.5KW,WXF27-WSS100M4,WXF27-WSS2.2KW,WXF27-WSS63M4,WXF27-WSS71M4,WXF27-WSS80M4,WXF27-WSS90M4,WXF27-WSSB100M4,WXF27-WSSB63M4,WXF27-WSSB71M4,WXF27-WSSB80M4,WXF27-WSSB90M4,WXF27-WSSVP100M4,WXF27-WSSVP63M4,WXF27-WSSVP71M4,WXF27-WSSVP80M4,WXF27-WSSVP90M4,WXF27-WSSVPB100M4,WXF27-WSSVPB63M4,WXF27-WSSVPB71M4,WXF27-WSSVPB80M4,WXF27-WSSVPB90M4。
